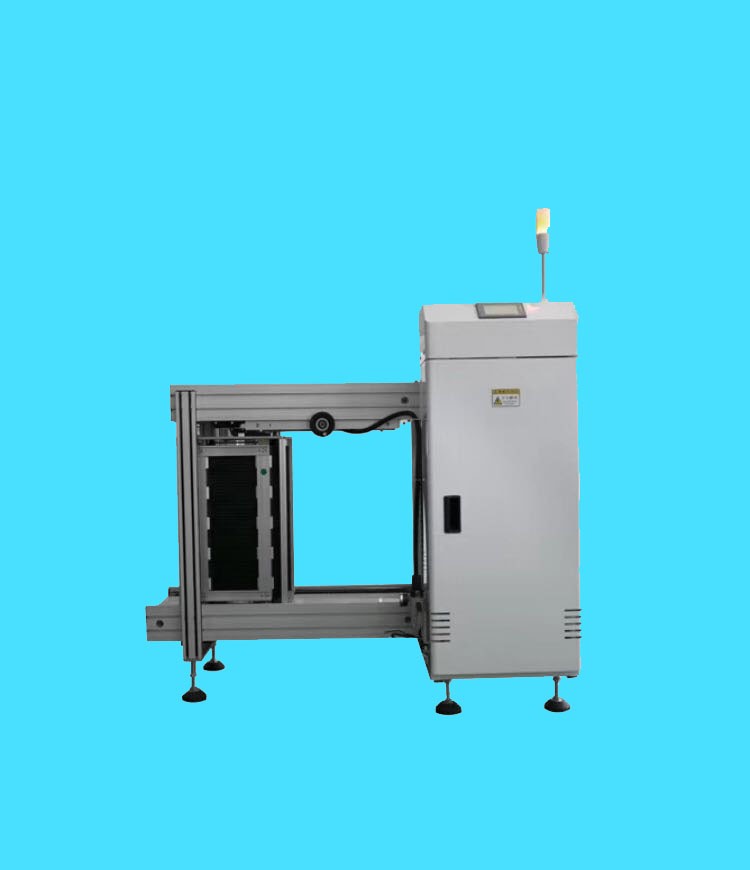

Automatic SMT assembly line loader unloader
- Place of Origin:CN;GUA
- Brand Name:Extension
- Model Number:360
- Name:Automatic SMT loader
- Dimension L*W*H(mm):1450x765x1250mm
- PCB size L*W (mm):80x50mm~350x250mm
- Conveyor Height:910+_30
- Conveyor Direction::L---R(R--L,Optional)
- Power:220V/50HZ 320W
- Condition::New
- Warranty::1 Year
- Model Number:360

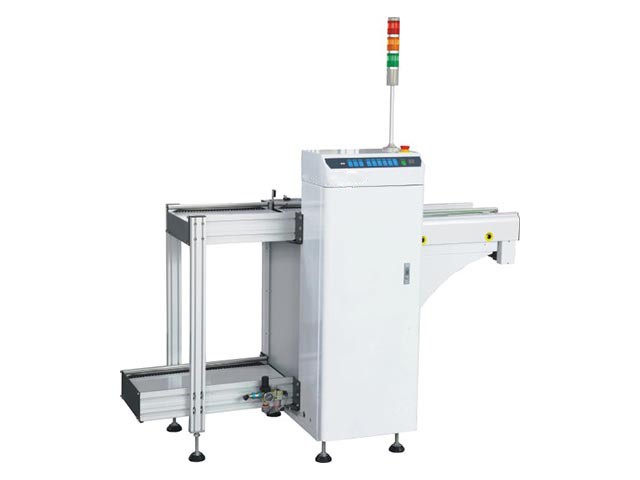

Automatic SMT assembly line loader unloader SMT peripheral equipment
Features
*The lift power uses a single-phase gear reducer motor.
* Lifting drive adopts 30MM hard shaft guide rail, equipped with Taiwan TBI ball screw drive.
*The lifting platform is made of aluminum plate machine with high precision and is not easy to change.
*The conveyor track is made of special profile with anti-collision stainless steel.
*The conveyor chain is made of PC40 black rubber.
* Control is controlled by Siemens PLC with light touch button switch operation.
* Device status indication: Use a tri-color lamp with a buzzer.
*Optical inductors are sensed by OMRON sensor
* The outlet is equipped with an anti-ply plate sensor to protect the PCB from being fully pushed out and lifting the splint.
* Pusher cylinders use motor cylinders to push the PCB out of the rack.
* The thrust of the push plate cylinder can be adjusted as needed to prevent the thrust from being too large to damage the PCB.
* Equipped with standard SMEMA signal plug for easy signal connection.
*The equipment casing is all electrostatically sprayed, and the surface is durable and will not be painted.
