Fuji SMT pick and place machine XP143E for SMT production line

Fuji SMT placement machines XP143E for SMT production line

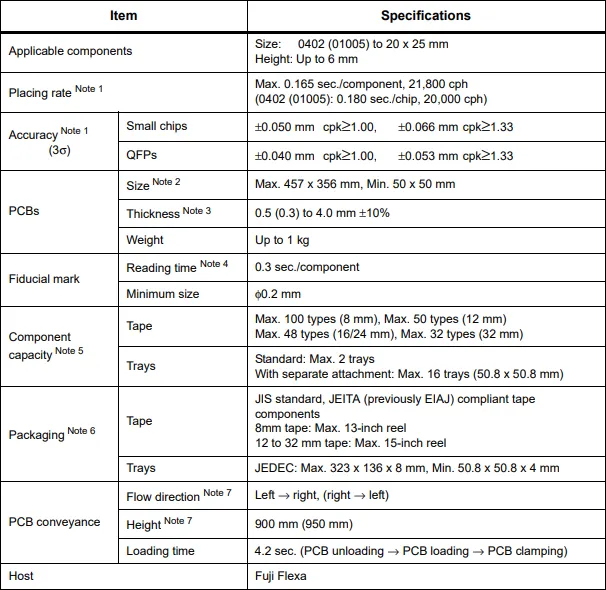

The FUJI XP143E is a high-speed, precision SMT placement machine designed for efficient and accurate assembly of electronic components on printed circuit boards (PCBs). Here are the key specifications and features of the FUJI XP143E:

1. Component Range: It can handle components from 0402 (01005) to 25mm x 20mm, with a maximum component height of 6mm, and is capable of placing BGA (as an option).
2. Placement Speed: The machine offers a placement speed of 0.165 seconds per chip, translating to 21,800 chips per hour for rectangular components and 20,000 chips per hour for 0402 components.
3. Placement Accuracy: The placement accuracy is ±0.050mm with a cpk of ≥1.00 for rectangular components and ±0.040mm with a cpk of ≥1.00 for QFP components.
4. PCB Dimensions: The maximum PCB size it can handle is 457mm x 356mm, and the minimum is 50mm x 50mm, with PCB thickness ranging from 0.3mm to 4.0mm.
5. Feeder Support: The machine supports up to 100 types of components (50 types on each side, front and back).
6. Machine Dimensions: The dimensions of the machine are L: 1,500mm, W: 1,300mm, and H: 1,408.5mm (excluding the signal tower).
7. Machine Weight: The approximate weight of the machine is 1,800KG (main body).

Additional features of the FUJI XP143E include the ability to place extremely small chips, the option to place BGA and CSP components, and an expanded maximum component size. It is equipped with a single tray platform, automatic nozzle changer, and features such as outgoing side buffering and non-waste placement functions.

Product Description



Fuji SMT pick and place machine XP143E for SMT production line





Specification



item	value
Condition	New
Weight (KG)	1500
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	6 Months
Core Components	Motor
Place of Origin	Japan
Brand Name	Fuji
Model Number	XP143E
Product name	Fuji machine XP143E



Company Profile





Seven System



1. Complete Supply Chain Management System:

Strictly select brand suppliers who have been at least 8 years old, and conduct annual supplier evaluation and assessment to ensure product quality and sustainable supply.





About us：





Extension Companywas established in 2009, SMT electronic manufacturing service company, service customers involved in EMS electronics manufacturing products in various areas, like smart phone, automotive electronics, earphones, air
conditioners, computers, communication tools, these product’s workshop planning, production management, quality control and efficiency improvement.



Specializes in FUJI/PANASONIC/Philips/ASM/YAMAHA/JUKI/Samsung pick and place machine,DEK printer, BTU, HELLER, TAMURA oven, KOHYOUNG, PARMI, TRI, SAKI, MIRTEC SPI, AOI, loader, unloader. Related feeder nozzle, working head, controller, CPU BOX, monitor, harness, Ball Screw, feeder trolley, have more than 1800 different type of SMT machines and spare parts in stock.Can respond fast, help find the machine/spare part problem, fix customer’s issue and ship out immediately.

Under the core value of “quality first,satisfy customer”, helped thousands of companies and won 60 countries customer ‘s trust with our 20 years SMT industry experience.

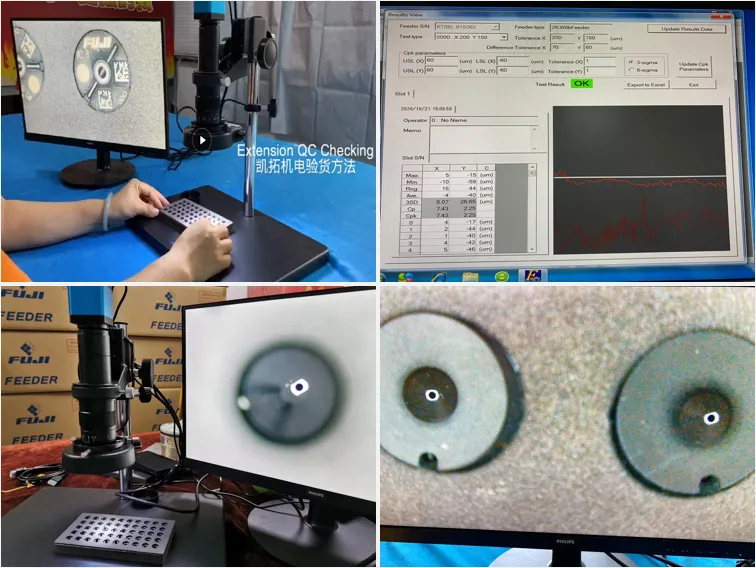

2. Strict Quality Control System:

We have quality engineers with 15 years of experience. The original products are the most contrasted. They can only be put into storage after passing the inspection standard.





3.Carefully Packaging System:

We use wooden box packaging, vacuum packaging, carton packaging and other combinations to ensure that the goods will not be damaged during transportation.

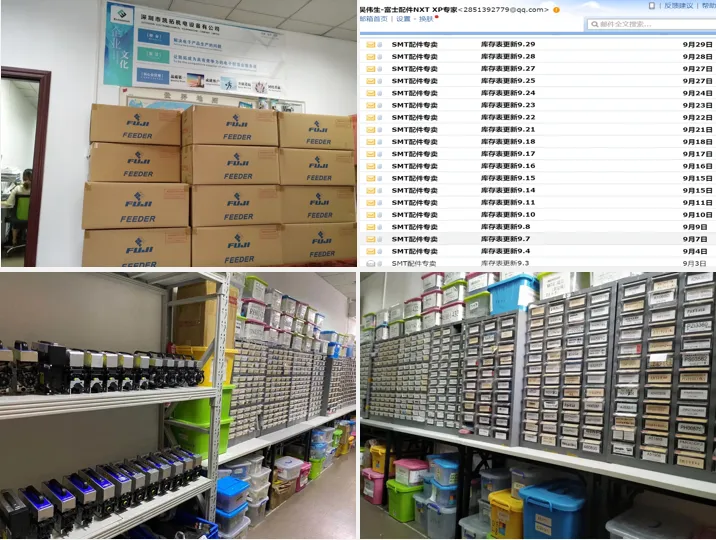

4. Powerful Inventory Support System:

We have more than 1500 different kinds of SMT Parts in stock, which can solve the problems encountered by customers in production in a timely manner.





5.Detailed pre-shipment inspection system:

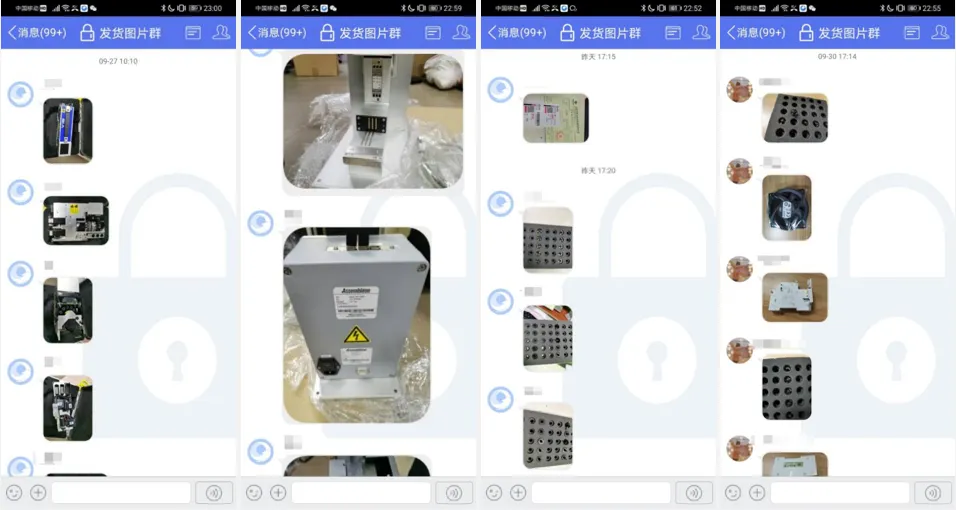

All goods will be tested and inspected again before shipment. Inspection videos and photos are recorded to ensure the quality of the products.





6. Nice After-sales Service System:

all the core components of the product are guaranteed. Our sales department has 13 colleagues, who provide 24 hours telephone and video support, as well as on-site installation services.





7.Safe and long-term cooperation system:

We exhibited 21 times, with an annual advertising budget of 100K USD, and won the trust of many customers. In the next 30 years, we will continue to contribute to the electronics manufacturing industry.





FAQ



1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(25.00%),North America(19.00%),South Asia(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South America(7.00%),Southern Europe(5.00%),Western Europe(5.00%),Eastern Asia(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
smt machine,smt parts,pcb printer,pick and place machine,reflow oven

4. why should you buy from us not from other suppliers?
We are the biggest and professionally of the SMT FUJI machine (NXT,XPF,XP141E,XP142E,XP143E,XP241E,XP242E,XP243E series) components supplier in China,and we have large market shares in the world.High quality and competitive price is our advantages.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
