JUKI RX-7R High-Speed Modular Mounter

Overview

The JUKI RX-7R is a high-speed modular mounter designed for the rapid placement of small components during the smt machine for pcb assembly . It is capable of handling both M-size boards (250mm × 330mm) and larger L-size boards (420mm × 450mm) simultaneously, without altering the machine's footprint, thus doubling the productivity for L-size board production.

Key Features

1. New"P16S Head"for Higher Placement Accuracy: The newly developed"P16S Head"enhances the axis precision, significantly improving the placement angle accuracy, which is crucial for the quality assurance of LED board production and other precision requirements.

2. Simultaneous Production of Two L-Size Boards: The RX-7R can produce two L-size boards (420mm × 450mm) at the same time, effectively doubling the production output.

3. Lead Component Coplanarity Check Function: In addition to the traditional chip coplanarity check, the RX-7R can also perform coplanarity checks for lead components, ensuring the correct orientation and placement of components.

4. Low Impact Placement Capability: The machine features a two-stage descent and ascent speed for the H-axis during placement, reducing the impact force when components contact the board, which is beneficial for soft boards with significant flex.

5. High-Speed Production: The RX-7R achieves an optimal placement rate of 75,000 CPH (Chip Placements per Hour) under the best conditions.

6. Compact Design with a Width of 998mm: The compact design allows for a high production rate per unit area, making it space-efficient.

7. Wide Range of Component Handling: The P16S head can place components ranging from 0.3mm × 0.15mm to 5mm in size and up to 3mm in height, while the P8 head can handle components from 0.6mm × 0.3mm to 25mm in size and up to 10.5mm in height.

Additional Capabilities

• The RX-7R also includes features such as automatic tape cutting, electric component feeding stations, and feeders that automatically correct for component placement errors to ensure synchronized pickup and improve production efficiency.
• The machine is part of JUKI's Smart Solutions, which supports overall factory solutions for improved production efficiency.

Product Description

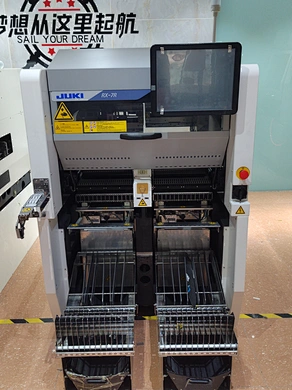

JUK SMT pick and place machine RX-7R for SMT production line

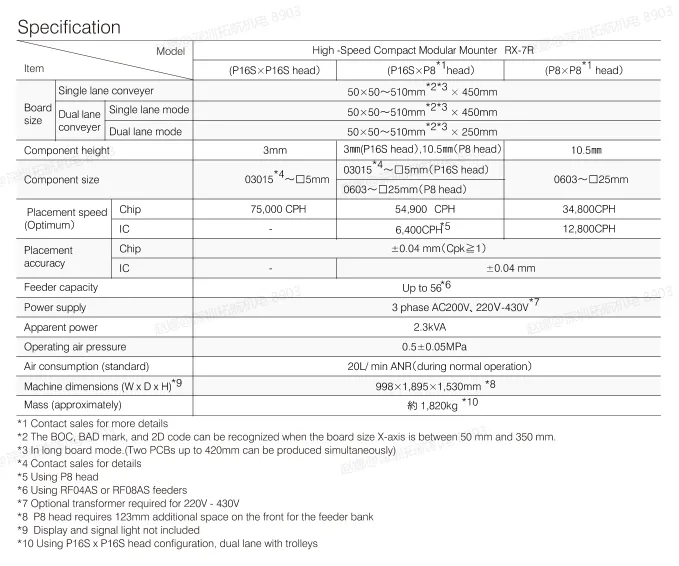

Specification



item	value
Condition	New
Weight (KG)	1000
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	3 months
Core Components	Motor
Place of Origin	Japan
Brand Name	JUKI
Model Number	RX-7R
Product name	JUKI SMT pick and place machine RX-7R
Name	SMT pick and place machine
Application	SMT production line
Type	SMT Machine
Package	Wooden Case



Company Profile





Seven System



1. Complete Supply Chain Management System:

Strictly select brand suppliers who have been at least 8 years old, and conduct annual supplier evaluation and assessment to ensure product quality and sustainable supply.





About us：





Extension Companywas established in 2009, SMT electronic manufacturing service company, service customers involved in EMS electronics manufacturing products in various areas, like smart phone, automotive electronics, earphones, air
conditioners, computers, communication tools, these product’s workshop planning, production management, quality control and efficiency improvement.



Specializes in FUJI/PANASONIC/Philips/ASM/YAMAHA/JUKI/Samsung pick and place machine,DEK printer, BTU, HELLER, TAMURA oven, KOHYOUNG, PARMI, TRI, SAKI, MIRTEC SPI, AOI, loader, unloader. Related feeder nozzle, working head, controller, CPU BOX, monitor, harness, Ball Screw, feeder trolley, have more than 1800 different type of SMT machines and spare parts in stock.Can respond fast, help find the machine/spare part problem, fix customer’s issue and ship out immediately.

Under the core value of “quality first,satisfy customer”, helped thousands of companies and won 60 countries customer ‘s trust with our 20 years SMT industry experience.

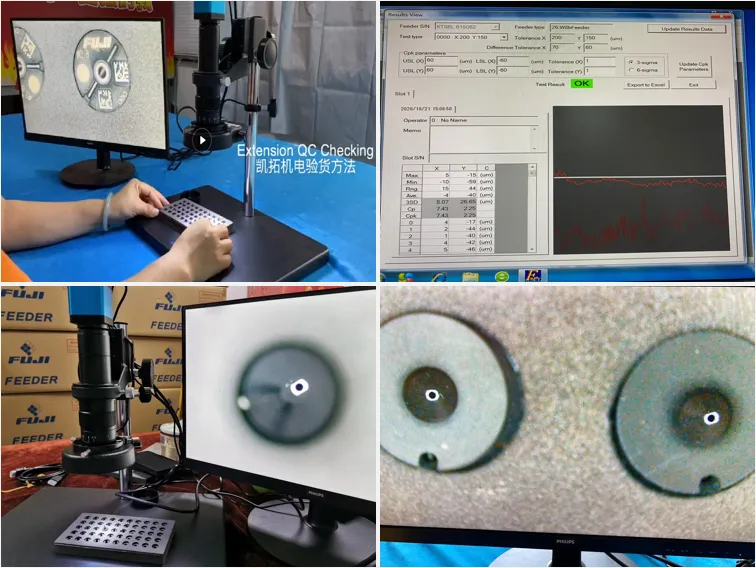

2. Strict Quality Control System:

We have quality engineers with 15 years of experience. The original products are the most contrasted. They can only be put into storage after passing the inspection standard.





3.Carefully Packaging System:

We use wooden box packaging, vacuum packaging, carton packaging and other combinations to ensure that the goods will not be damaged during transportation.

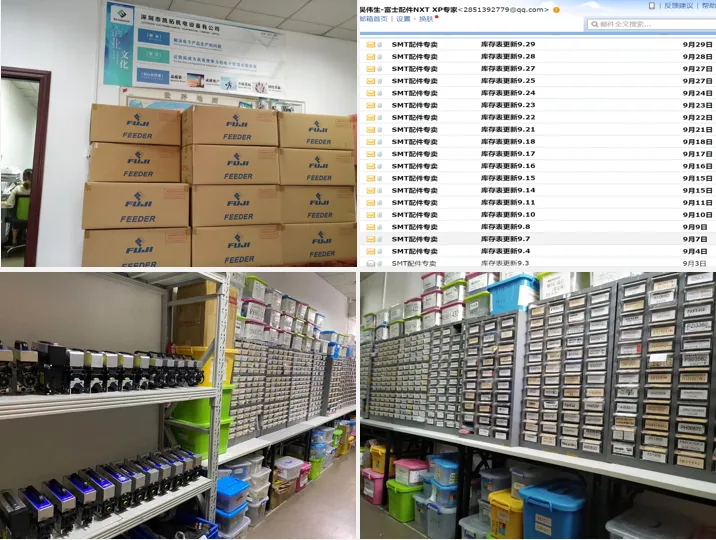

4. Powerful Inventory Support System:

We have more than 1500 different kinds of SMT Parts in stock, which can solve the problems encountered by customers in production in a timely manner.





5.Detailed pre-shipment inspection system:

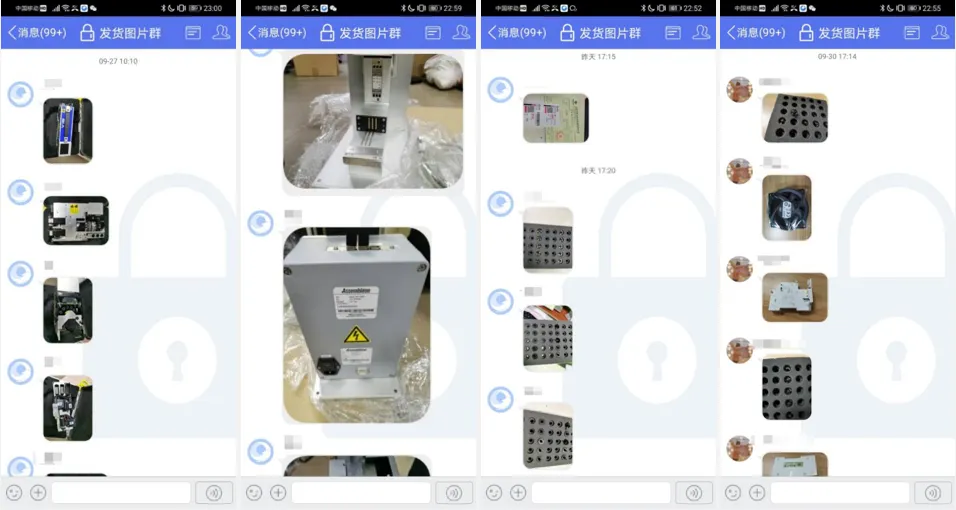

All goods will be tested and inspected again before shipment. Inspection videos and photos are recorded to ensure the quality of the products.





6. Nice After-sales Service System:

all the core components of the product are guaranteed. Our sales department has 13 colleagues, who provide 24 hours telephone and video support, as well as on-site installation services.





7.Safe and long-term cooperation system:

We exhibited 21 times, with an annual advertising budget of 100K USD, and won the trust of many customers. In the next 30 years, we will continue to contribute to the electronics manufacturing industry.





FAQ



1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(25.00%),North America(19.00%),South Asia(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South America(7.00%),Southern Europe(5.00%),Western Europe(5.00%),Eastern Asia(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
smt machine,smt parts,pcb printer,pick and place machine,reflow oven

4. why should you buy from us not from other suppliers?
We are the biggest and professionally of the SMT FUJI machine (NXT,XPF,XP141E,XP142E,XP143E,XP241E,XP242E,XP243E series) components supplier in China,and we have large market shares in the world.High quality and competitive price is our advantages.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
