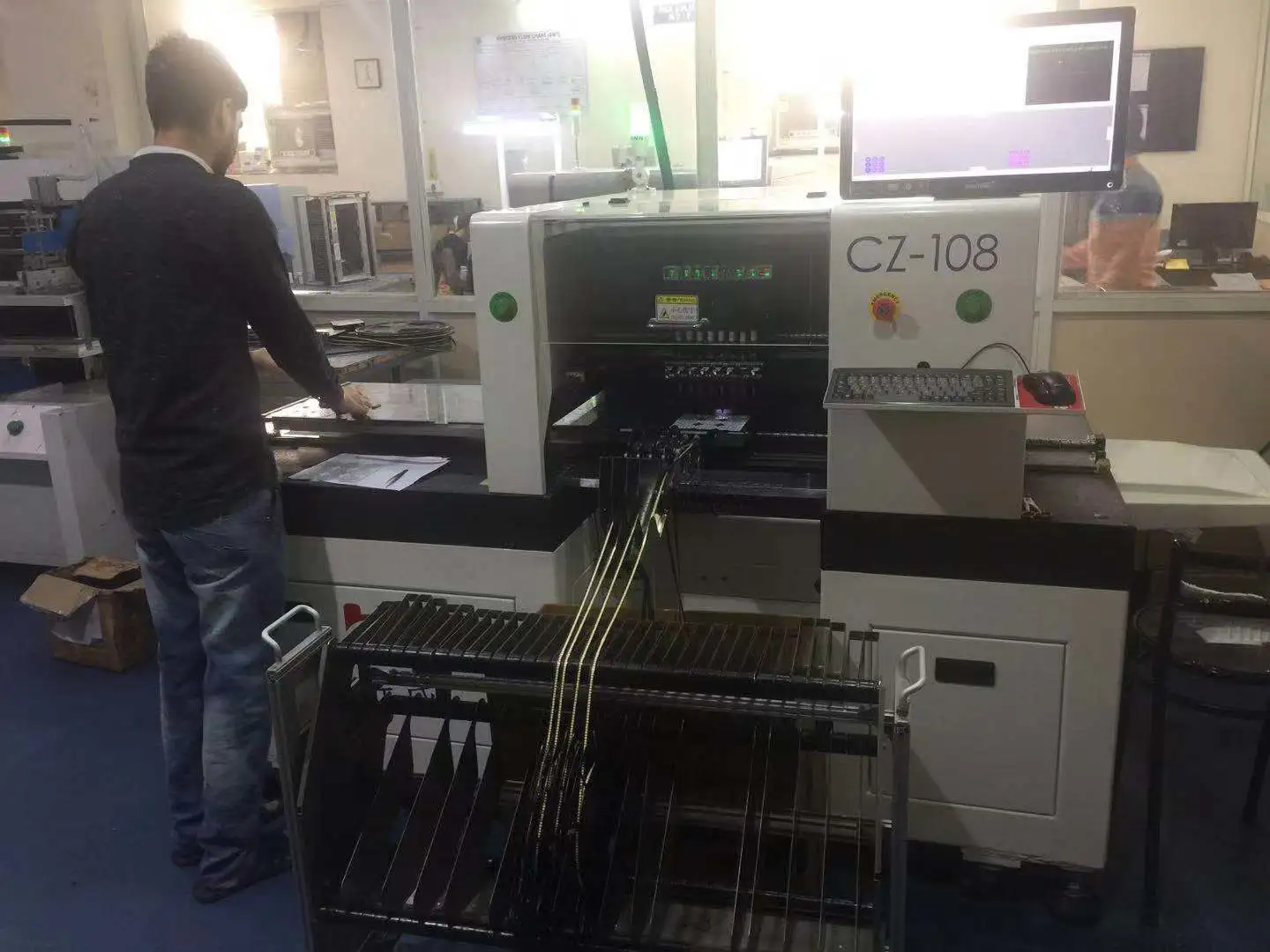

LED Mounter/LED placement machine /LED pick and place machine for 1.2M LED PCB with 75000 cph
- Place of Origin:CN;GUA
- Brand Name:EXTENSION

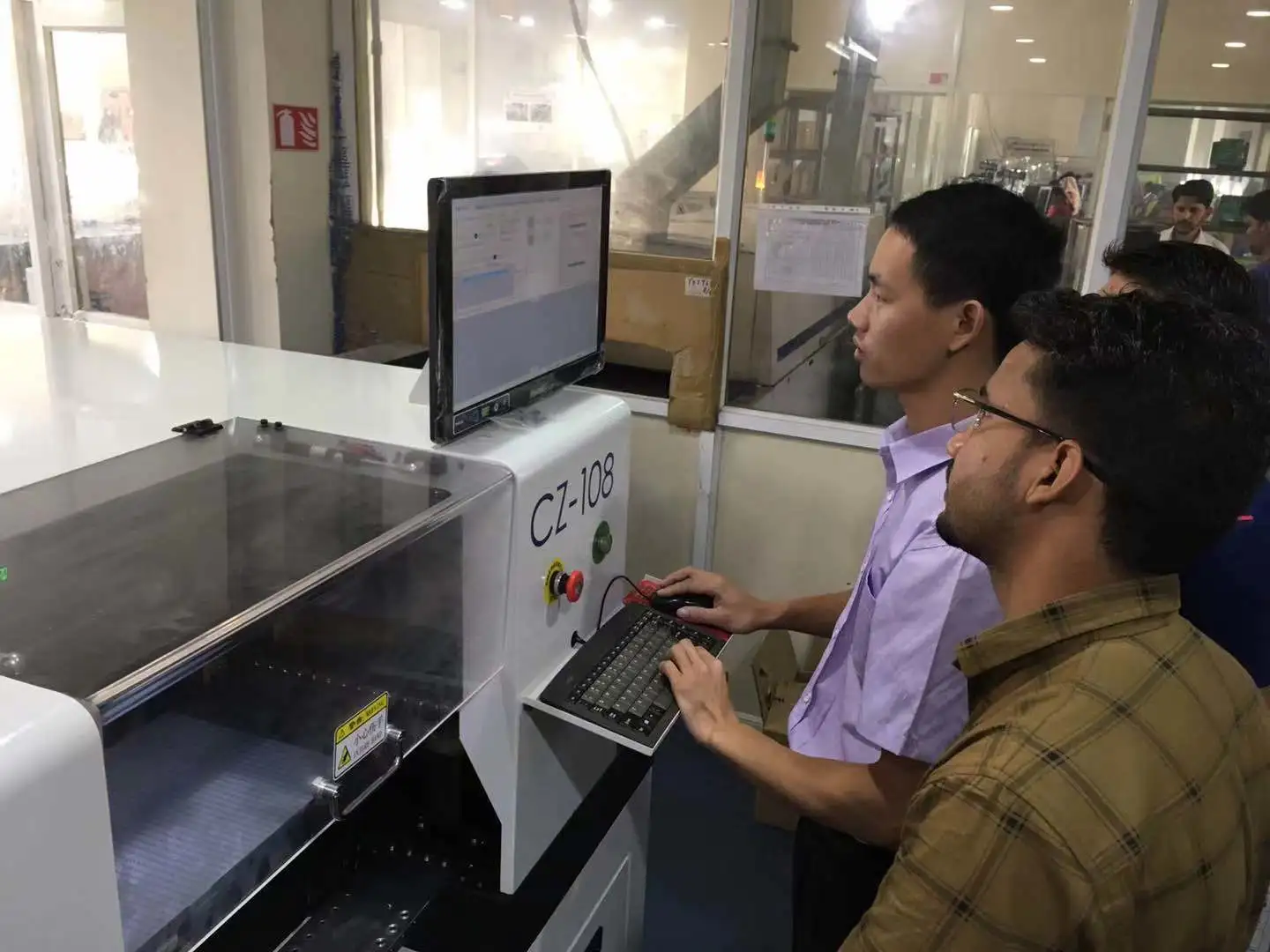

- Model Number:CZ 108
- Production capacity:75000 CPH
- Component Centering method:Image recognition
- Machinery accuracy:±0.02mm
- Mounting accuracy:±0.05mm
- Max mounting circuit board size:1500mm (L) 390mm(W)
- Max moving circuit board size:2600mm (L) 390mm(W)
- Max component height:6mm
- Component scope:0603~7474,some special component IC/QFP/CSP
- Feeder(s):16PCS(Maximum)
- Placement head:8 heads
SMT PICK AND PLACE MACHINE/LED Mounter/LED placement machine /LED pick and place machine for 1.2M LED PCB with 75000 cph
,
[Specification]
1. Placement speed: 55000 CPH (Theoretical)
44000-48000 CPH (average)
2. Targeting method:Visual positioning
3. Programming method:automatic correction of image recognition
4. Mechanical accuracy: ± 0.02MM
5. Placement accuracy: ±0.05MM
6. Maximum board size:1500MM*390MM
7. Maximum moving range:2600MM*390MM
8. Maximum board thickness:6MM
9. Component type: 0603-5050-7474, high power LED components
10. Qty for feeder: 20pcs (8mm)
11. Mounting head: 8 heads
12. Cable: imported from Germany
13. Servo motor: imported from Japan
14. Ball screw: imported from Japan
15. Valve:Japan CKD
16. Vacuum system: vacuum generator
17. Machine size: 2000MM*1330MM*1400MM
18. Working voltage: AC200V, 50HZ
19. Working pressure: 0.5MPa
20. Machine weight: 1500KG
Shenzhen extension electromechanical Co,.Ltd be located in beautiful city Shenzhen,China,
Which is one of the biggest center of electronic products.
We specialized in supplying SMT spare parts for many years,with advantage of high class quality,complete SMT spare parts line,competitive price,large stock,professional technology support and after-sale service.
Our products attractive many visitors from American,Russian,India,Vietnam,Canada in NEPCON FAIR.they speak highly of our products.
Package:bubble bag with protective carton box
Our products be shipped to worldwide.
We acceptDHL;FEDEX;UPS;EMS; HK postmail;forwarder or the transportation customer required.
T/T before shipment, after we shipped the goods, we willinformyou the shipping details.
