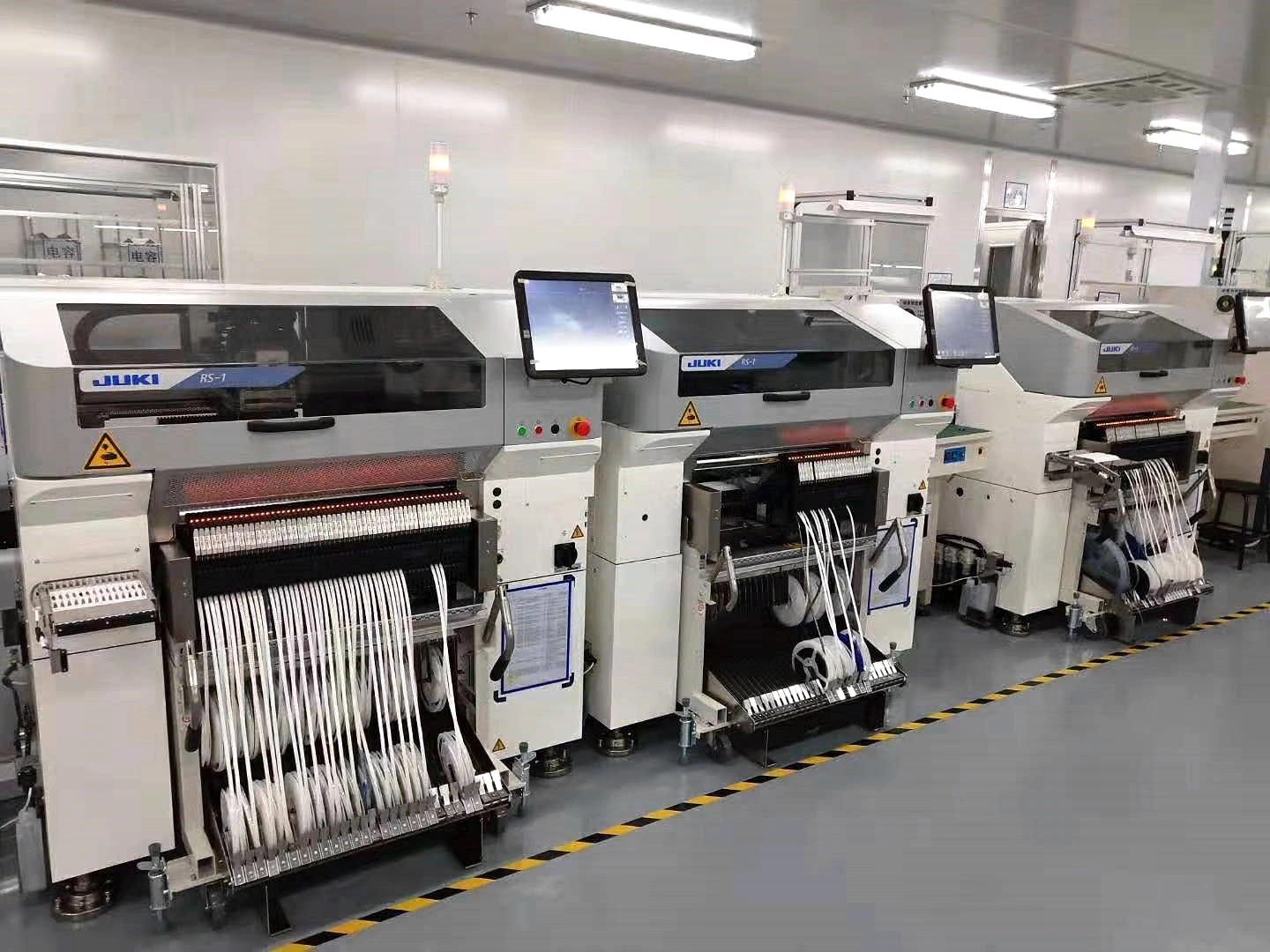

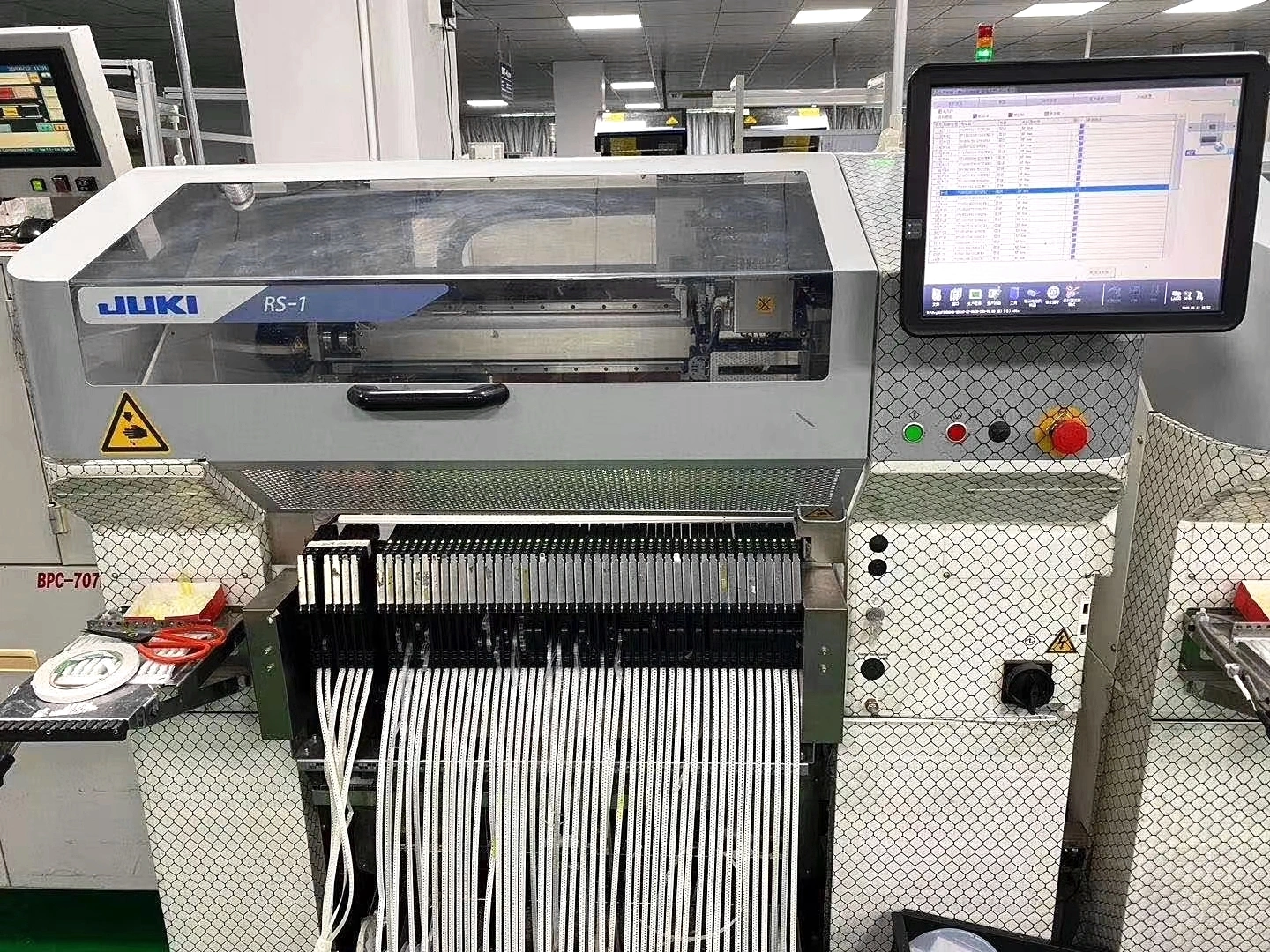

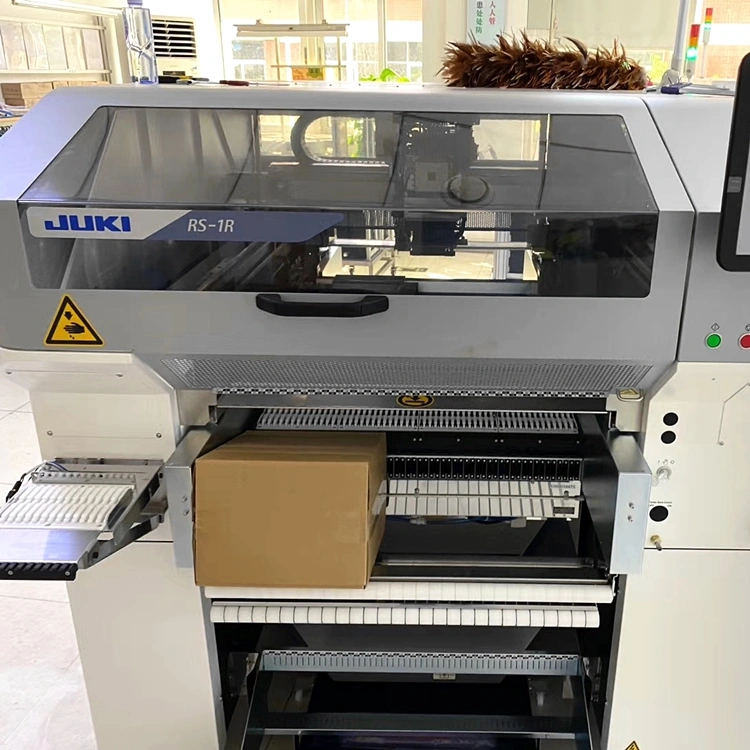

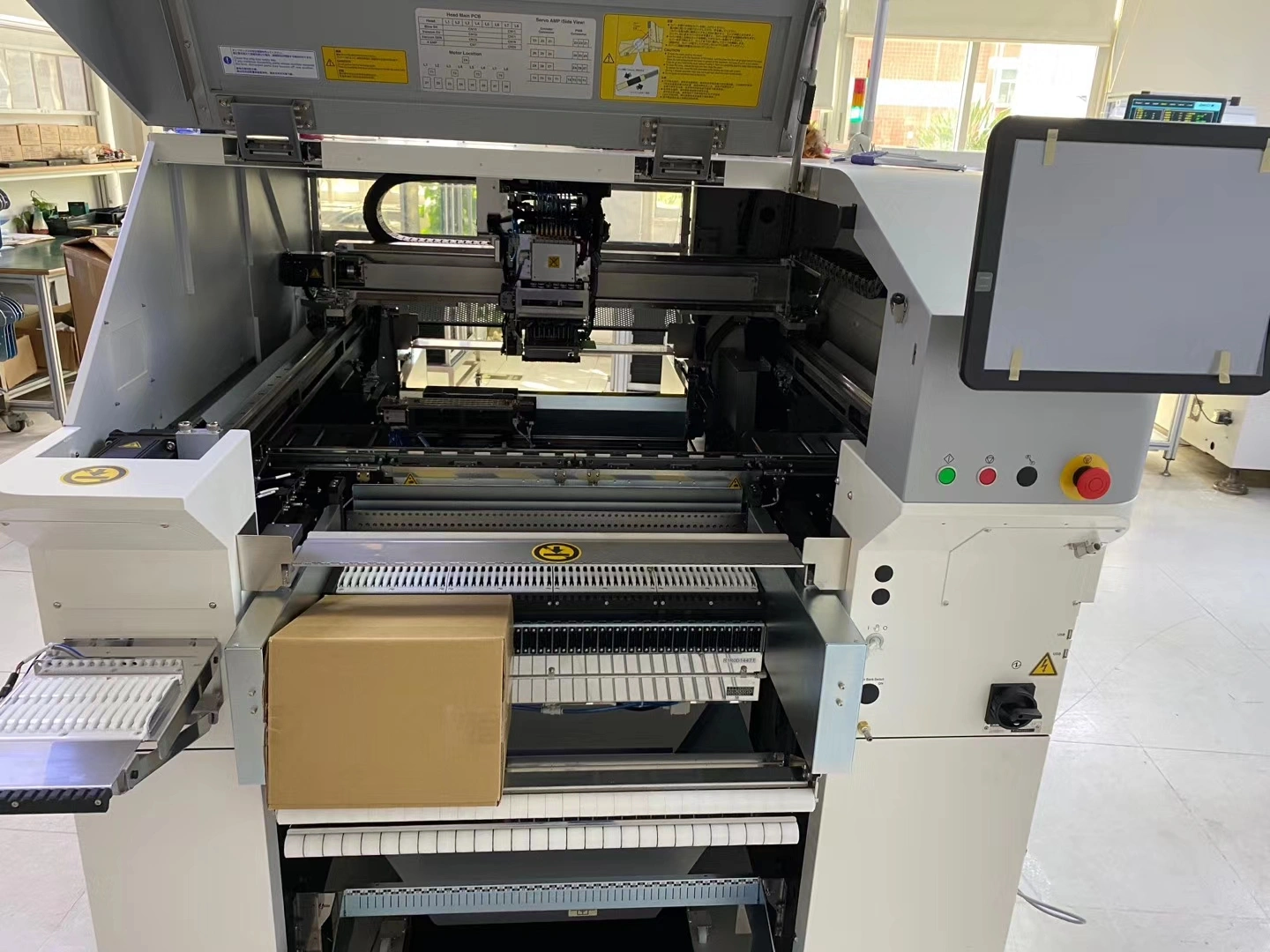

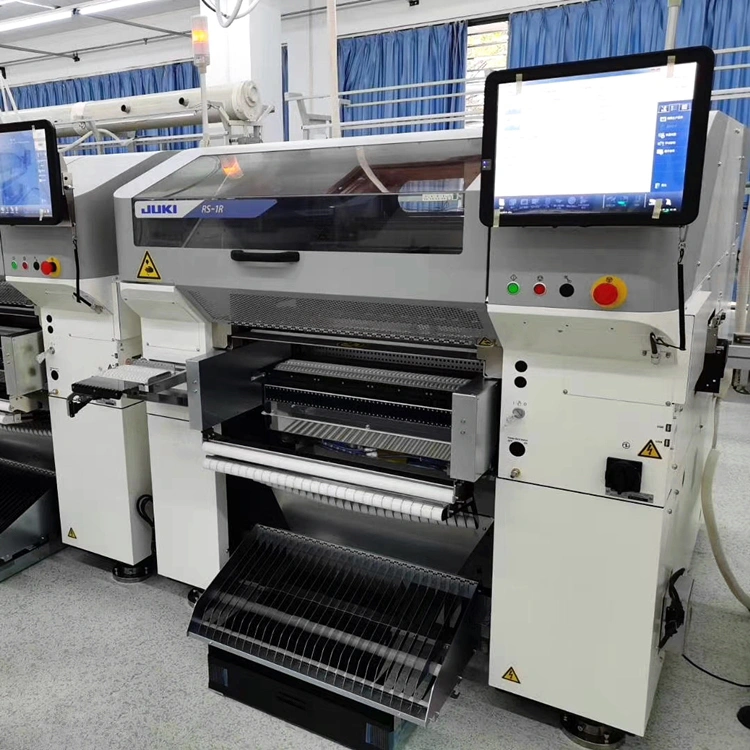

JUKI RS-1R High-Speed smt pick place machine

Overview

The JUKI RS-1R is a high-speed, smart chip shooter machine designed for exceptional productivity and versatility in surface mount technology (SMT) applications. It is an all-in-one mounter that transcends the limitations of high-speed and general-purpose machines, offering a comprehensive solution for a wide range of production needs.

Key Features

• Class-Leading Speed: The RS-1R boasts an optimal mounting speed of up to 47,000 components per hour (CPH), making it one of the fastest in its class.
• New"Takumi Head": This newly developed head unit features a changing recognition sensor height, allowing it to adapt to various component sizes and heights for optimal placement.
• Optimum Line Balance: The machine is designed to achieve the best line balance, ensuring the highest throughput and efficiency in production.
• Wide Component Range: Capable of handling components from 0201 (metric) to large connectors and ICs, making it suitable for a diverse array of electronic components, including LEDs.
• LED Placement Optimization: The RS-1R is particularly well-suited for LED placement, with features tailored to enhance the speed and accuracy of this process.

Technical Specifications

• Conveyor Specification: The machine comes with standard, 150mm extended, and 250mm extended conveyor options to accommodate different production line configurations.
• Board Size: The RS-1R can handle board sizes ranging from a minimum of 50×50mm to a maximum of 1,200×370mm with double clamping, depending on the buffer configuration.
• Component Height: The maximum component height that can be accommodated is 25mm.
• Component Size: The machine is capable of placing components ranging from 0201 to 74mm square and up to 50×150mm in size.
• Placement Speed: Under optimal conditions, the RS-1R can achieve a placement speed of 47,000 CPH.
• Placement Accuracy: The machine maintains a high level of accuracy with ±35μm (Cpk≥1).
• Vision Recognition: The vision system provides a recognition accuracy of ±30μm.
• Feeder Inputs: The RS-1R supports up to 112 feeder inputs when using RF(RF08AS) feeders.

Applications

The JUKI RS-1R is ideal for use in various industries, including consumer electronics, automotive, LED lighting, and more, where high-speed and precision placement are required.

Product Description





Specification



item	value
Condition	Used
After Warranty Service	Online support
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Marketing Type	Ordinary Product
Warranty of core components	3 months
Core Components	Motor, Gear
Place of Origin	Japan
Brand Name	JUKI
Model Number	JUKI RS-1R
Warranty	Unavailable
Product name	High Speed SMT Chip Mounter JUKI RS-1R SMT Pick And Place Machine
Application	SMT Production Line
Usage	SMT Pick And Place
Type	SMT Machine
Quality	100%Brand
Condition	Original Used
Package	Wooden Case
Name	SMT Pick And Place Machine



Company Profile





Seven System



1. Complete Supply Chain Management System:

Strictly select brand suppliers who have been at least 8 years old, and conduct annual supplier evaluation and assessment to ensure product quality and sustainable supply.





About us：





Extension Companywas established in 2009, SMT electronic manufacturing service company, service customers involved in EMS electronics manufacturing products in various areas, like smart phone, automotive electronics, earphones, air
conditioners, computers, communication tools, these product’s workshop planning, production management, quality control and efficiency improvement.



Specializes in FUJI/PANASONIC/Philips/ASM/YAMAHA/JUKI/Samsung pick and place machine,DEK printer, BTU, HELLER, TAMURA oven, KOHYOUNG, PARMI, TRI, SAKI, MIRTEC SPI, AOI, loader, unloader. Related feeder nozzle, working head, controller, CPU BOX, monitor, harness, Ball Screw, feeder trolley, have more than 1800 different type of SMT machines and spare parts in stock.Can respond fast, help find the machine/spare part problem, fix customer’s issue and ship out immediately.

Under the core value of “quality first,satisfy customer”, helped thousands of companies and won 60 countries customer ‘s trust with our 20 years SMT industry experience.





2. Strict Quality Control System:

We have quality engineers with 15 years of experience. The original products are the most contrasted. They can only be put into storage after passing the inspection standard.





3.Carefully Packaging System:

We use wooden box packaging, vacuum packaging, carton packaging and other combinations to ensure that the goods will not be damaged during transportation.

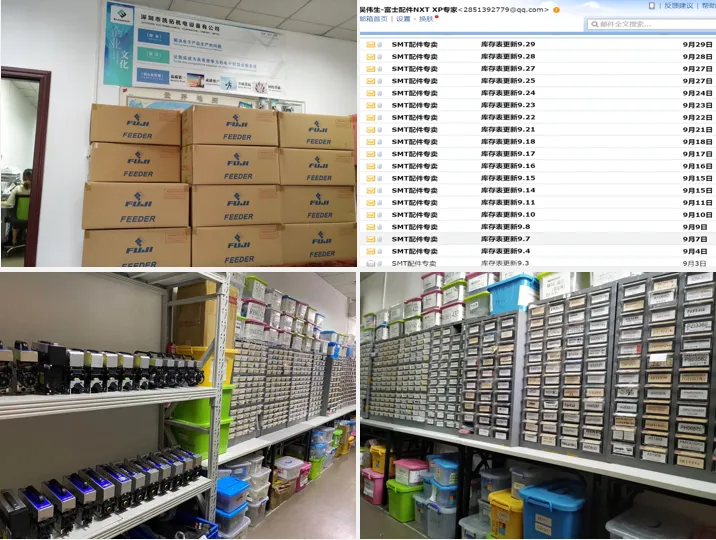

4. Powerful Inventory Support System:

We have more than 1500 different kinds of SMT Parts in stock, which can solve the problems encountered by customers in production in a timely manner.





5.Detailed pre-shipment inspection system:

All goods will be tested and inspected again before shipment. Inspection videos and photos are recorded to ensure the quality of the products.





6. Nice After-sales Service System:

all the core components of the product are guaranteed. Our sales department has 13 colleagues, who provide 24 hours telephone and video support, as well as on-site installation services.





7.Safe and long-term cooperation system:

We exhibited 21 times, with an annual advertising budget of 100K USD, and won the trust of many customers. In the next 30 years, we will continue to contribute to the electronics manufacturing industry.
