LED assembly wave soldering machine price/smt machine wave soldering machine factory price/ led pick and place

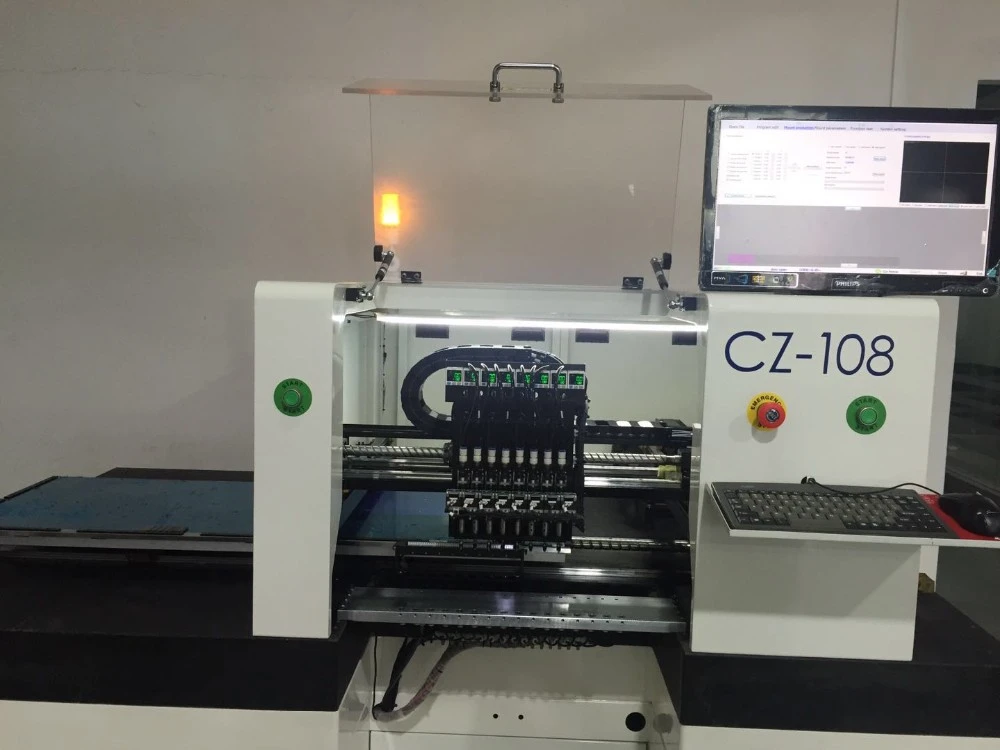

CZ-108
Country of Origin
shenzhen
Quantity
$25000.00 - $26000.00
/ set
- Condition:New, New
- Weight (KG):10
- Showroom Location:None
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:3 months
- Core Components:Motor
- Place of Origin:Guangdong, China
- Brand Name:CZ-108
- Model Number:CZ-108
- Warranty:3 months, 1 Year
- Name:led pick and place
- Model:CZ-108
- Feature::with LED
- Quantity of nountin:8
- Theoretical CPH::75000 CPH
- average CPH:28000 CPH--35000 CPH
- WEIGHT:1500KG
- Item:SMT pick place
Product Description
LED assembly wave soldering machine price/smt machine wave soldering machine factory price/ led pick and place
Name | LED Pick And Place Machine | ||||
1.Placement speed | 75000 CPH (Theoretical) 28000 CPH--35000 CPH (average) | ||||
2.Targeting method | Visual positioning | ||||
3.Programming method | automatic correction of image recognition | ||||
4.Mechanical accuracy | ± 0.02MM | ||||
5.Placement accuracy | ±0.05MM | ||||
6.Maximum board size | 1200MM*390MM | ||||
7.Maximum moving | 2600MM*390MM | ||||
8.Maximum board thickness | 6MM | ||||
9.Component type | 0603-5050-7474, high power LED components | ||||
10.Qty for feeder | 16 pcs (8mm) | ||||
11.Mounting head | 8 heads | ||||
12.Cable | imported from Germany | ||||
13.Servo motor | imported from Japan | ||||
14.Ball screw | imported from Japan | ||||
15.Valve: | Japan CKD | ||||
16.Vacuum system | vacuum generator | ||||

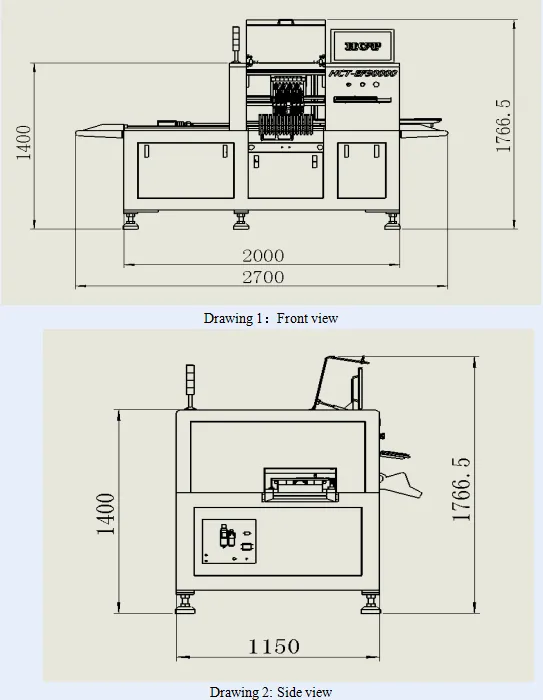

17.Machine size | 2000MM*1330MM*1400MM | ||||
18.Working voltage | AC200V, 50HZ | ||||
19.Working pressure | 0.5MPa | ||||
20.Machine weight | 1500KG | ||||

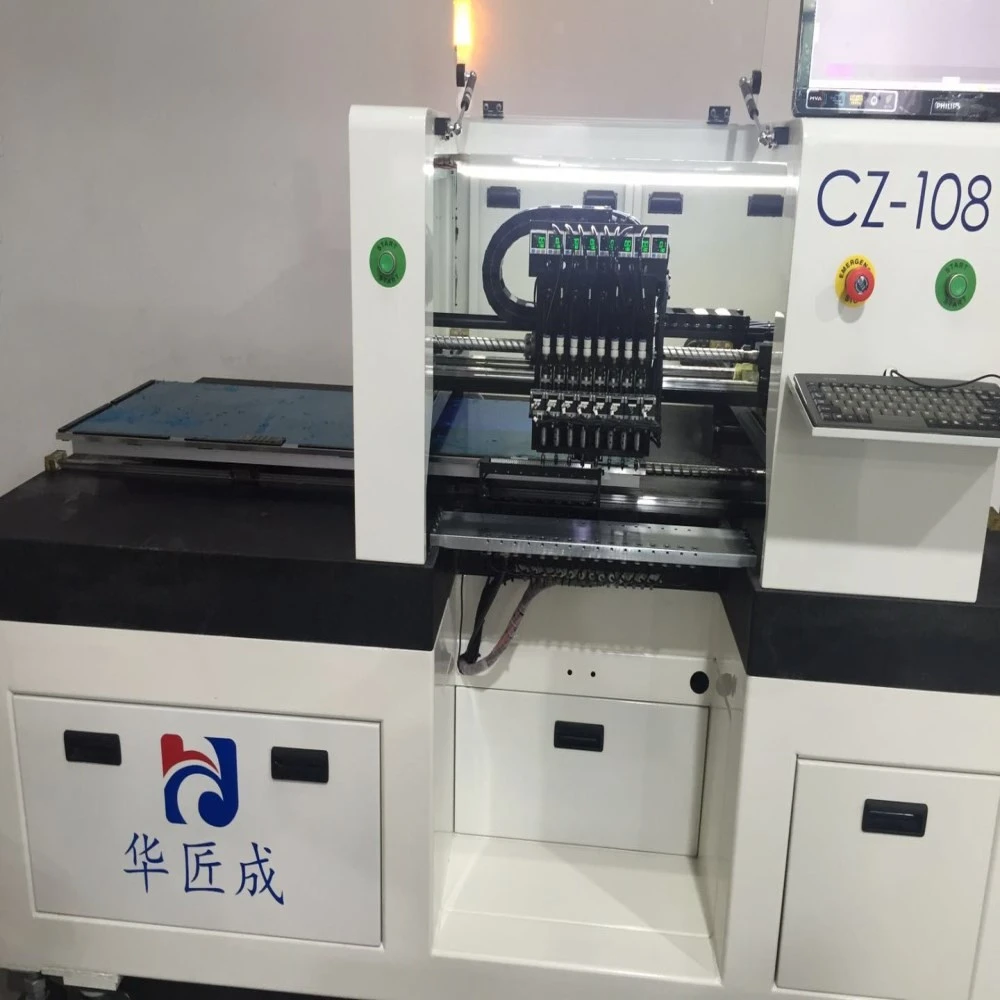

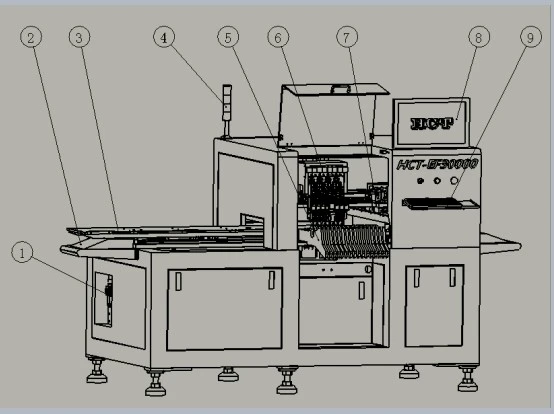

Detailed Images
1 Pneumatic filter | ||
2 Protective device | ||
3 Platform | ||
4 Signal light | ||
5 Feeder | ||
6 Nozzle components | ||
7 XY pick-up components | ||
8 Displayer | ||
9 Key board | ||
