JUKI KE-3010AL para línea de producción SMT

JUKI KE-3010AL: Advanced chip mounter machine for Precision Manufacturing

The JUKI KE-3010AL is a high-speed juki pick and place machine with the following main specifications and features:

1. Basic Technology: It utilizes JUKI's fundamental technology with independent XYZ-axis control, where each nozzle's vertical movement (Z-axis) and rotation (θ-axis) are controlled by independent AC servo motors, enabling precise height and angle control.

2. Component Mounting Range: Capable of mounting various shapes of components, from 0402 (01005 metric) chips to 33.5mm square PLCC, SOP, QFP, etc.

3. Component Detection Features: Includes chip stand-up check, odd-shaped component check, component drop check, and post-mounting component check, using laser to inspect the entire process from component pickup to placement, enhancing mounting quality.

4. Closed-Loop Control: The XY mechanism uses JUKI's proprietary AC servo motors and linear encoders for full closed-loop control, achieving high-speed and high-precision mounting.

5. Image Recognition Technology: Employs multi-nozzle image recognition function 'MNVC (Multi-Nozzle Vision Centering)', significantly improving the mounting speed of small-pitch ICs or odd-shaped components (such as FBGA, connectors, etc.).

6. Component Mounting Speed: Chip components can reach up to 23,500 CPH (Chip Placement per Hour) under optimal laser recognition conditions and 18,500 CPH according to IPC9850, with IC components reaching 9,000 CPH using the MNVC option.

7. Component Mounting Accuracy: Laser recognition accuracy is ±0.05mm (Cpk≧1), and image recognition accuracy is ±0.04mm.

8. Component Types: Can install up to 160 different types of components using electric double-track tape feeders.

9. Operation Convenience: Simplifies the production preparation process, allowing operators to complete necessary tasks following step-by-step instructions.

10. Non-stop Operation: In case of component depletion, the equipment continues to operate without stopping, allowing continued production from the other side's feeder.

11. Long Board Correspondence: By double-passing the board, the X-direction board size can be expanded to meet the needs of boards of different lengths.

12. Production Preparation Support Function: Using the component measurement function, actual measured component dimensions, pin count, and pitch can be directly input, simplifying the creation of component data.

13. Customized Nozzles: Customizable according to user needs for a variety of odd-shaped components.

14. High-Speed Mounter KE-3010A: An upgraded version of"KE-2070", it is the first model in the KE series to support chip mounters with electric feeders, adopting"high-speed continuous image recognition"technology, significantly improving the mounting speed of IC components.

15. Support Systems: Such as IS-Lite and IFS-NX, used to improve the overall productivity and manufacturing quality of the production line, reducing costs through efficiency.

These specifications and features make the JUKI KE-3010AL a highly flexible and efficient mounting solution suitable for high-speed mounting needs of a variety of electronic components.

Product Description



JUK SMT pick and place machine KE-3010AL for SMT production line

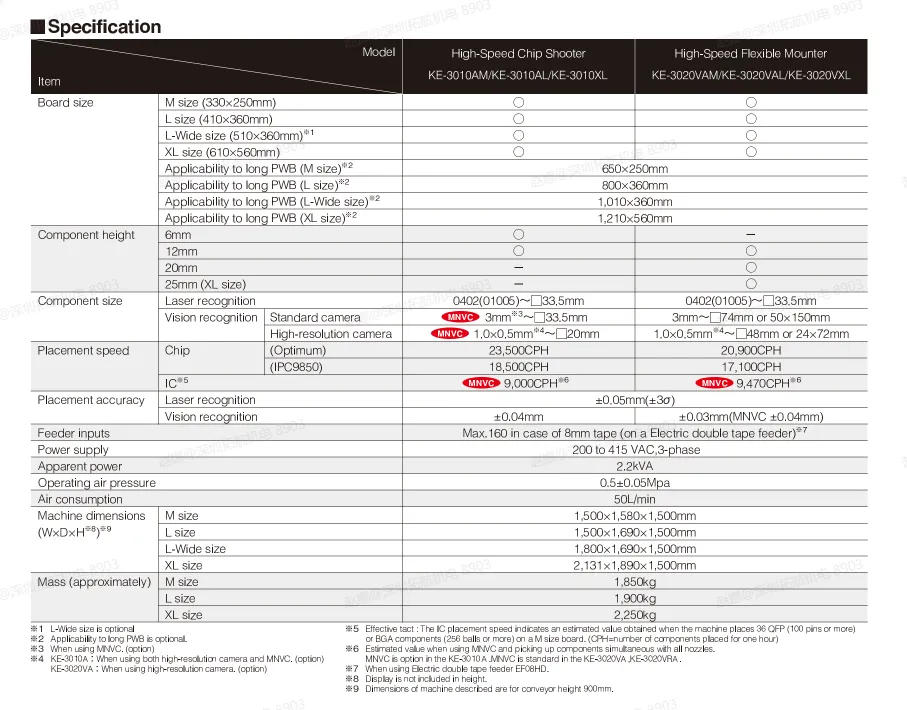

Specification



item	value
Condition	New
Weight (KG)	1000
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	3 months
Core Components	Motor
Place of Origin	Japan
Brand Name	JUKI
Model Number	KE-3010AL
Product name	JUKI SMT pick and place machine KE-3010AL
Name	JUKI SMT pick and place machine
Application	SMT Assembly Production Line
Package	Wooden Case



Company Profile





Seven System



1. Complete Supply Chain Management System:

Strictly select brand suppliers who have been at least 8 years old, and conduct annual supplier evaluation and assessment to ensure product quality and sustainable supply.





About us：





Extension Companywas established in 2009, SMT electronic manufacturing service company, service customers involved in EMS electronics manufacturing products in various areas, like smart phone, automotive electronics, earphones, air
conditioners, computers, communication tools, these product’s workshop planning, production management, quality control and efficiency improvement.



Specializes in FUJI/PANASONIC/Philips/ASM/YAMAHA/JUKI/Samsung pick and place machine,DEK printer, BTU, HELLER, TAMURA oven, KOHYOUNG, PARMI, TRI, SAKI, MIRTEC SPI, AOI, loader, unloader. Related feeder nozzle, working head, controller, CPU BOX, monitor, harness, Ball Screw, feeder trolley, have more than 1800 different type of SMT machines and spare parts in stock.Can respond fast, help find the machine/spare part problem, fix customer’s issue and ship out immediately.

Under the core value of “quality first,satisfy customer”, helped thousands of companies and won 60 countries customer ‘s trust with our 20 years SMT industry experience.

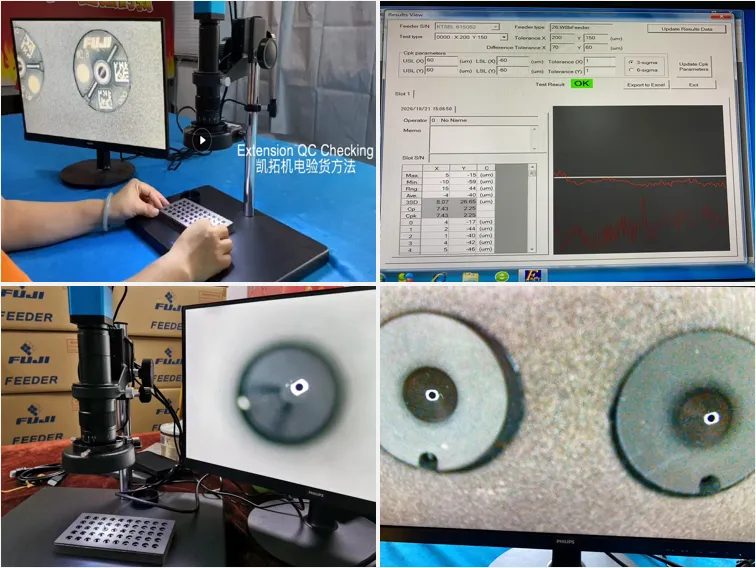

2. Strict Quality Control System:

We have quality engineers with 15 years of experience. The original products are the most contrasted. They can only be put into storage after passing the inspection standard.

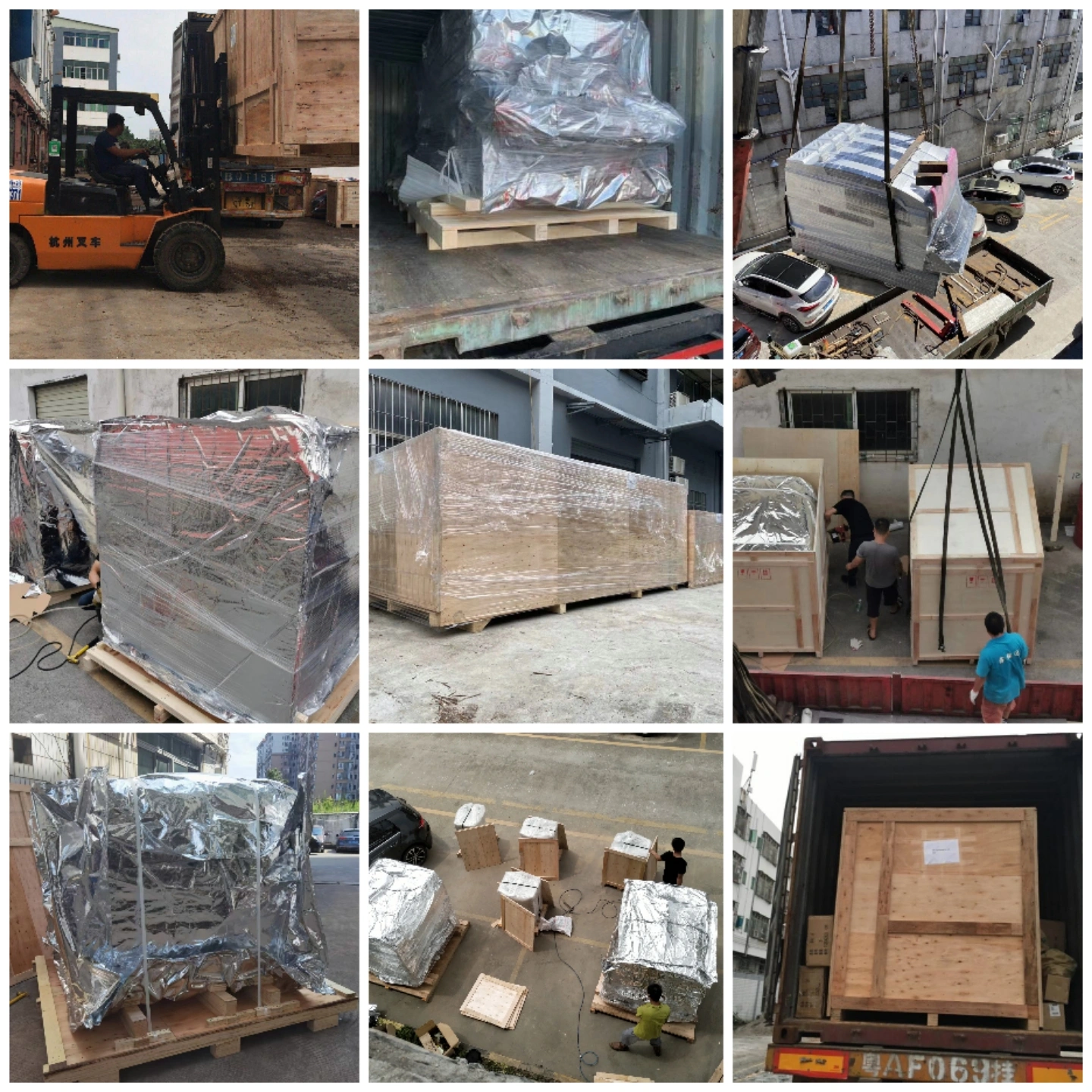

3.Carefully Packaging System:

We use wooden box packaging, vacuum packaging, carton packaging and other combinations to ensure that the goods will not be damaged during transportation.

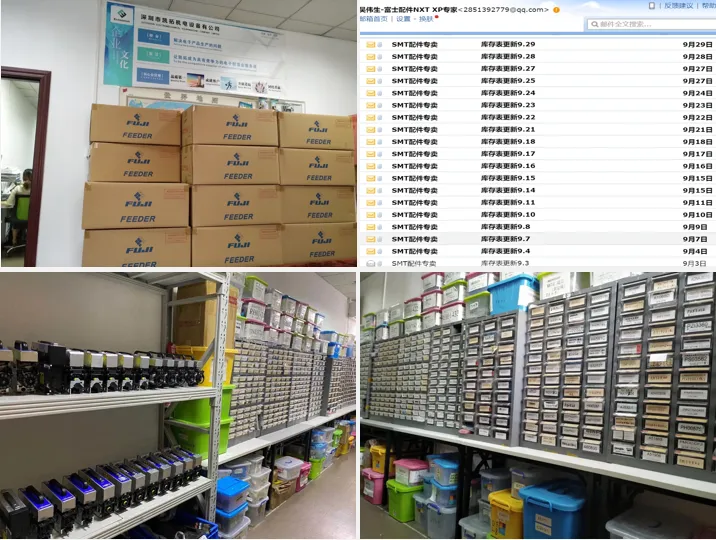

4. Powerful Inventory Support System:

We have more than 1500 different kinds of SMT Parts in stock, which can solve the problems encountered by customers in production in a timely manner.

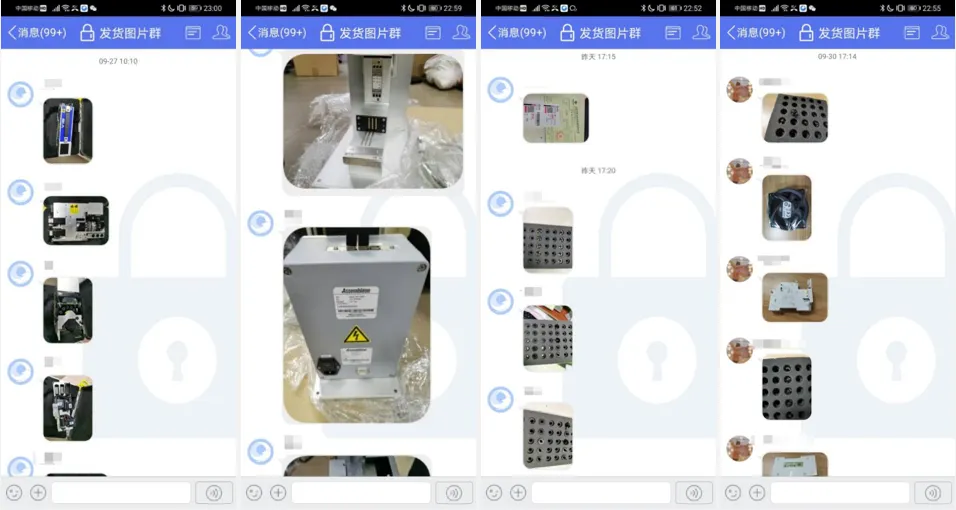

5. Detailed pre-shipment inspection system:

All goods will be tested and inspected again before shipment. Inspection videos and photos are recorded to ensure the quality of the products.





6. Nice After-sales Service System:

all the core components of the product are guaranteed. Our sales department has 13 colleagues, who provide 24 hours telephone and video support, as well as on-site installation services.





7.Safe and long-term cooperation system:

We exhibited 21 times, with an annual advertising budget of 100K USD, and won the trust of many customers. In the next 30 years, we will continue to contribute to the electronics manufacturing industry.





FAQ



1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(25.00%),North America(19.00%),South Asia(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South America(7.00%),Southern Europe(5.00%),Western Europe(5.00%),Eastern Asia(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
smt machine,smt parts,pcb printer,pick and place machine,reflow oven

4. why should you buy from us not from other suppliers?
We are the biggest and professionally of the SMT FUJI machine (NXT,XPF,XP141E,XP142E,XP143E,XP241E,XP242E,XP243E series) components supplier in China,and we have large market shares in the world.High quality and competitive price is our advantages.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
