Panasonic insertion machine AV132 THT for smt line

Panasonic insertion machine AV132 THT for smt line

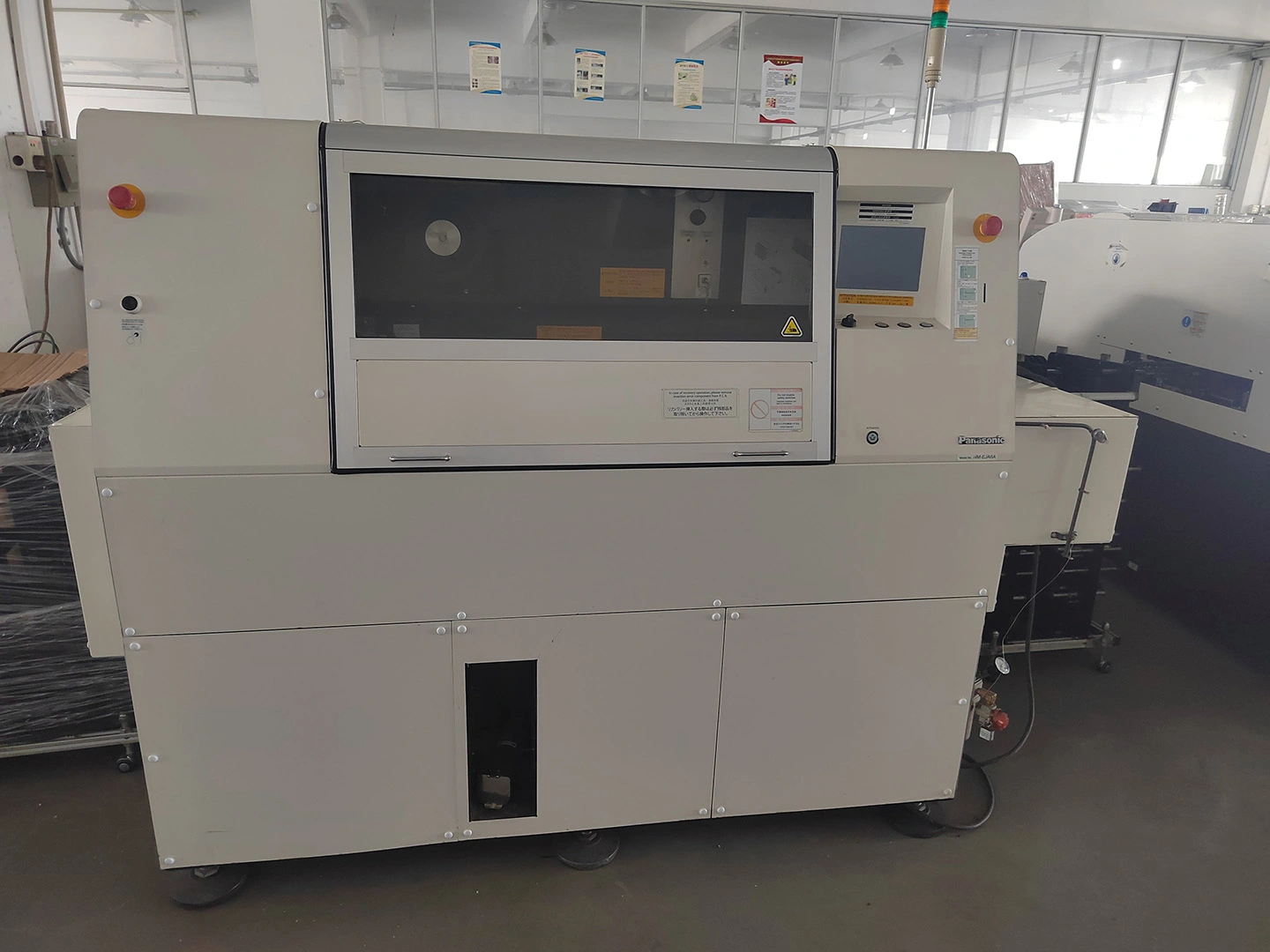

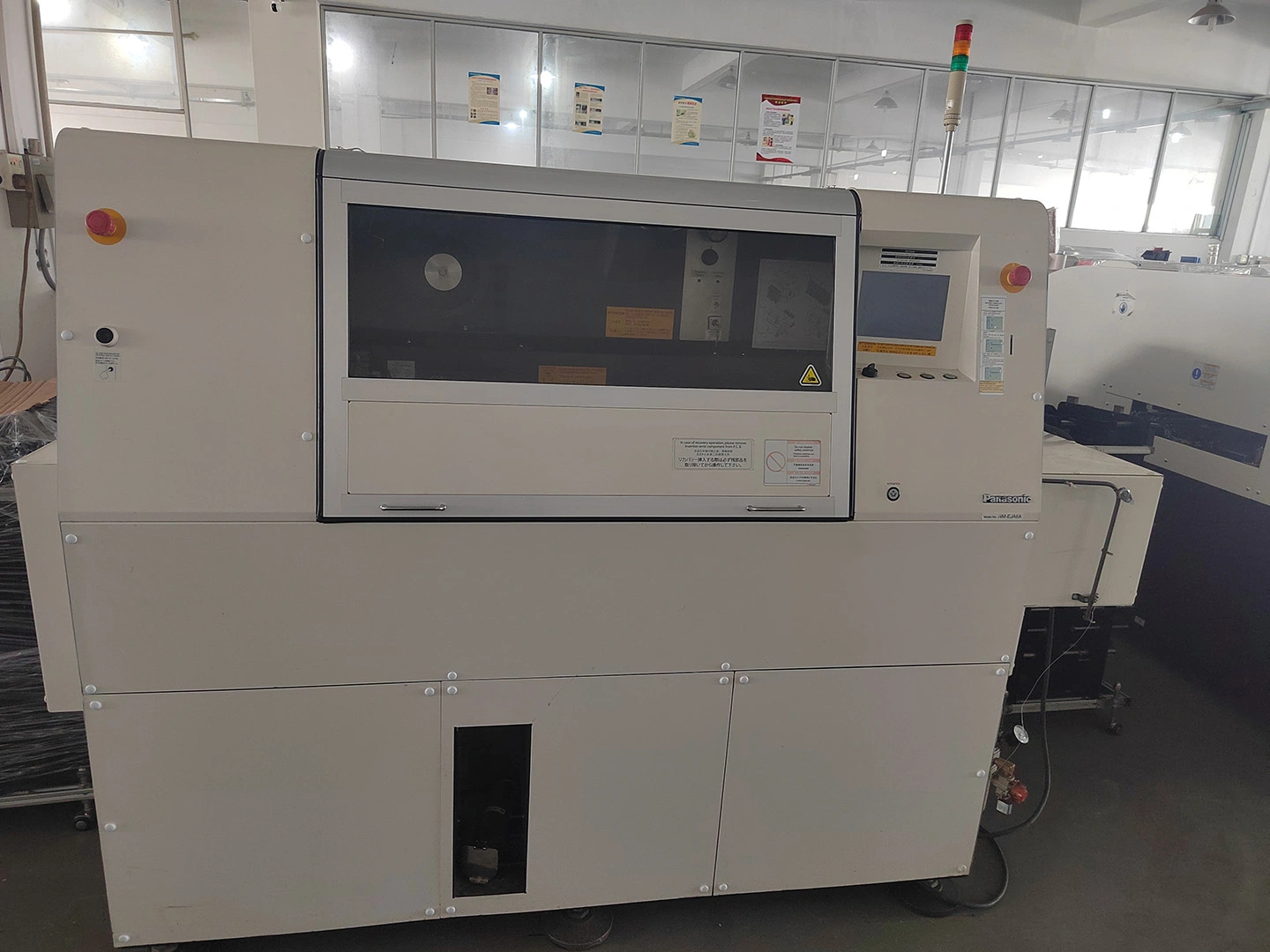

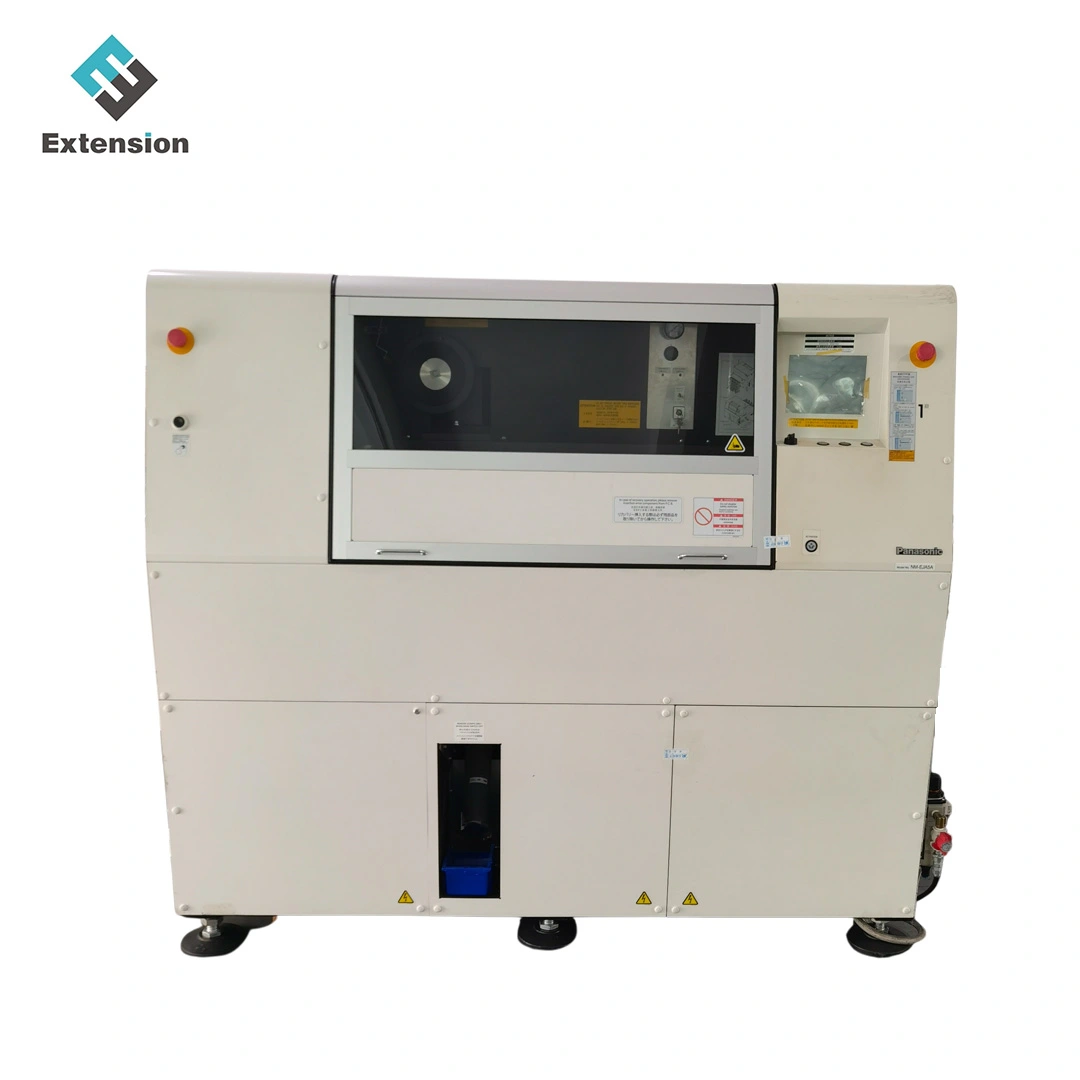

The Panasonic AV132 is a high-speed axial lead component insertion machine designed for efficient and precise assembly in electronics manufacturing. Here are some of the key features and specifications of the Panasonic AV132:

1. High-Speed Insertion: The AV132 is capable of an insertion speed of 0.12 seconds per component, which translates to a cycle time of 30,000 components per hour (CPH).

2. Component Inputs: The machine can be configured with 40 or 80 component inputs, with an optional jumper wire feeder, allowing for a diverse range of components to be inserted.

3. PCB Dimensions: The AV132 can handle PCB sizes ranging from 50mm x 50mm to 508mm x 381mm, accommodating a wide range of board sizes.

4. Insertion Directions: Components can be inserted in four directions: 0°, 90°, 180°, and 270°, providing flexibility for various board layouts.

5. Operational Efficiency: The machine is equipped with a fixed component feeder unit and an out-of-component detection feature, which allows for long-term non-stop operation and efficient production.

6. User Interface: The operation panel features a liquid crystal touch screen with guided operation for ease of use.

7. Power and Pneumatic Requirements: The AV132 operates on a three-phase AC 200 V supply and requires a pneumatic source of 0.5 MPa, 200 L/min.

8. Machine Dimensions and Weight: The dimensions of the machine are W 3,106 mm x D 2,300 mm x H 1,575 mm, and it weighs approximately 2,648 kg.

9. Additional Features: The AV132 includes features such as auto-recovery from insertion errors, support for large PCBs up to 650 mm x 381 mm, and the ability to run two PCBs simultaneously to reduce load times.

Product Description



Panasoni insertion machine AV132





Specification



item	value
Condition	New
Weight (KG)	1000
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	6 Months
Core Components	Motor
Place of Origin	Japan
Brand Name	Panasonic
Model Number	AV132
Type	SMT Machine
DELIVERY	20-35 Days
Quality	High Qualiy
Condition	Original Used
