Panasoni insertion machine RL131 THT for smt line

Panasonic insertion machine RL131 THT for smt line

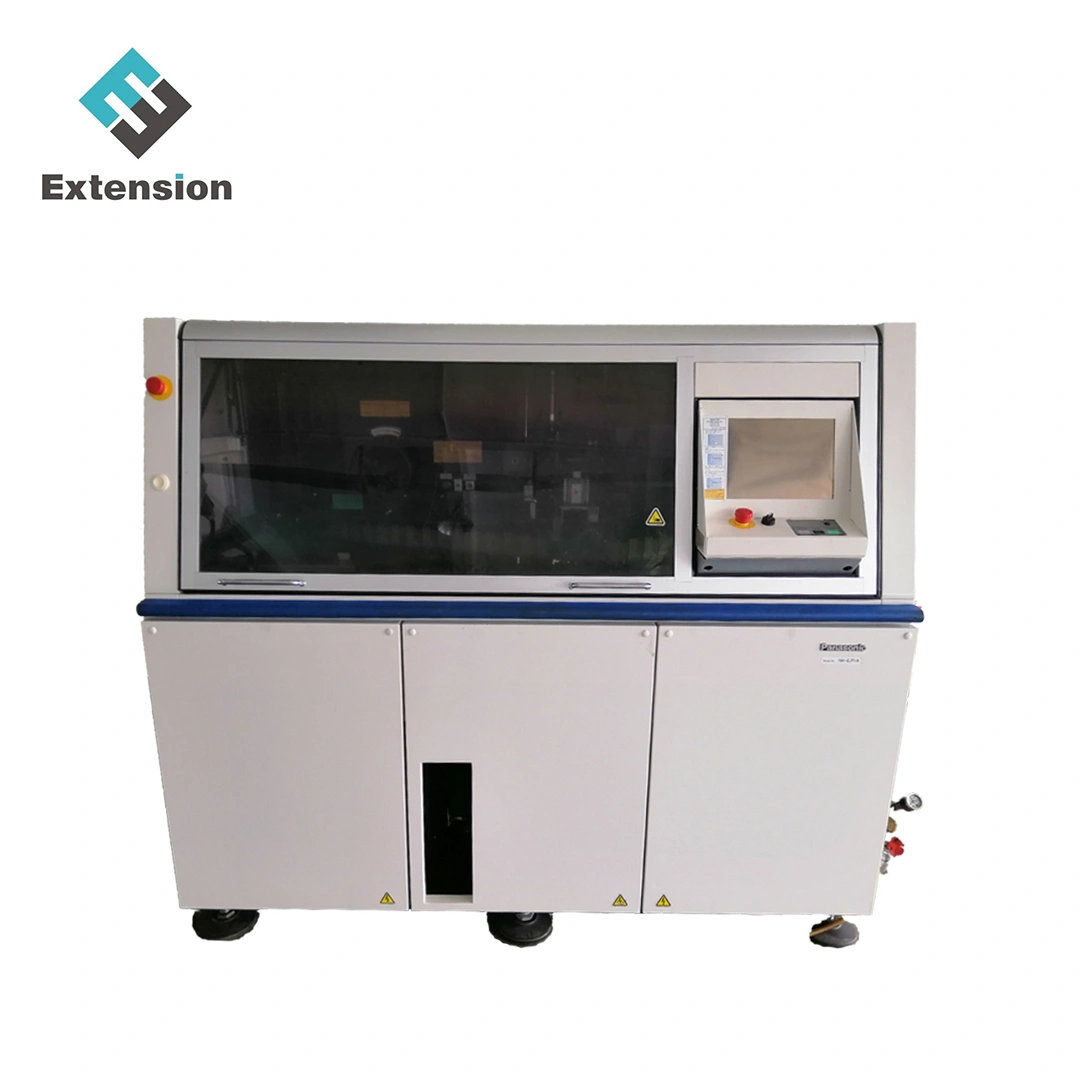

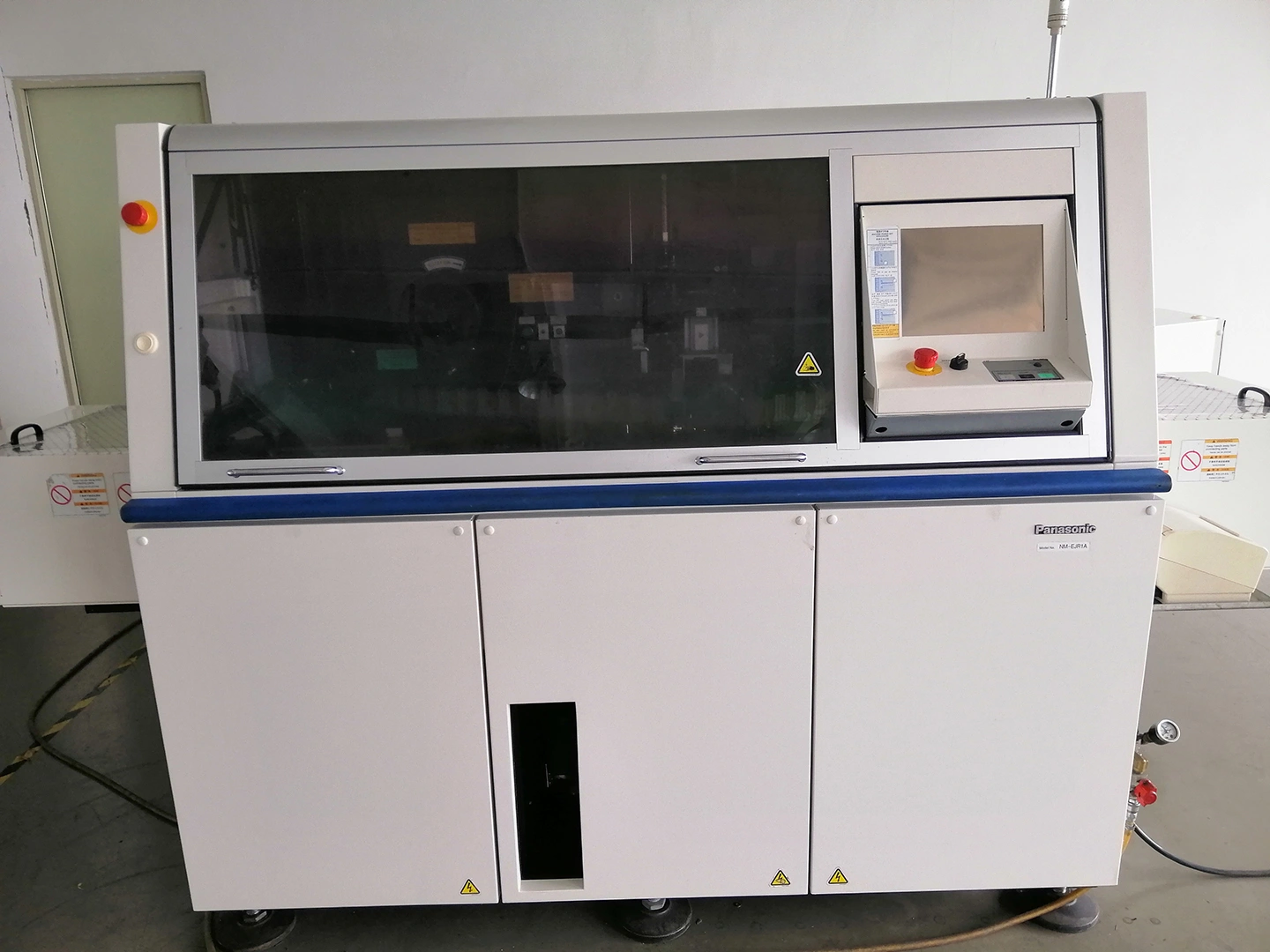

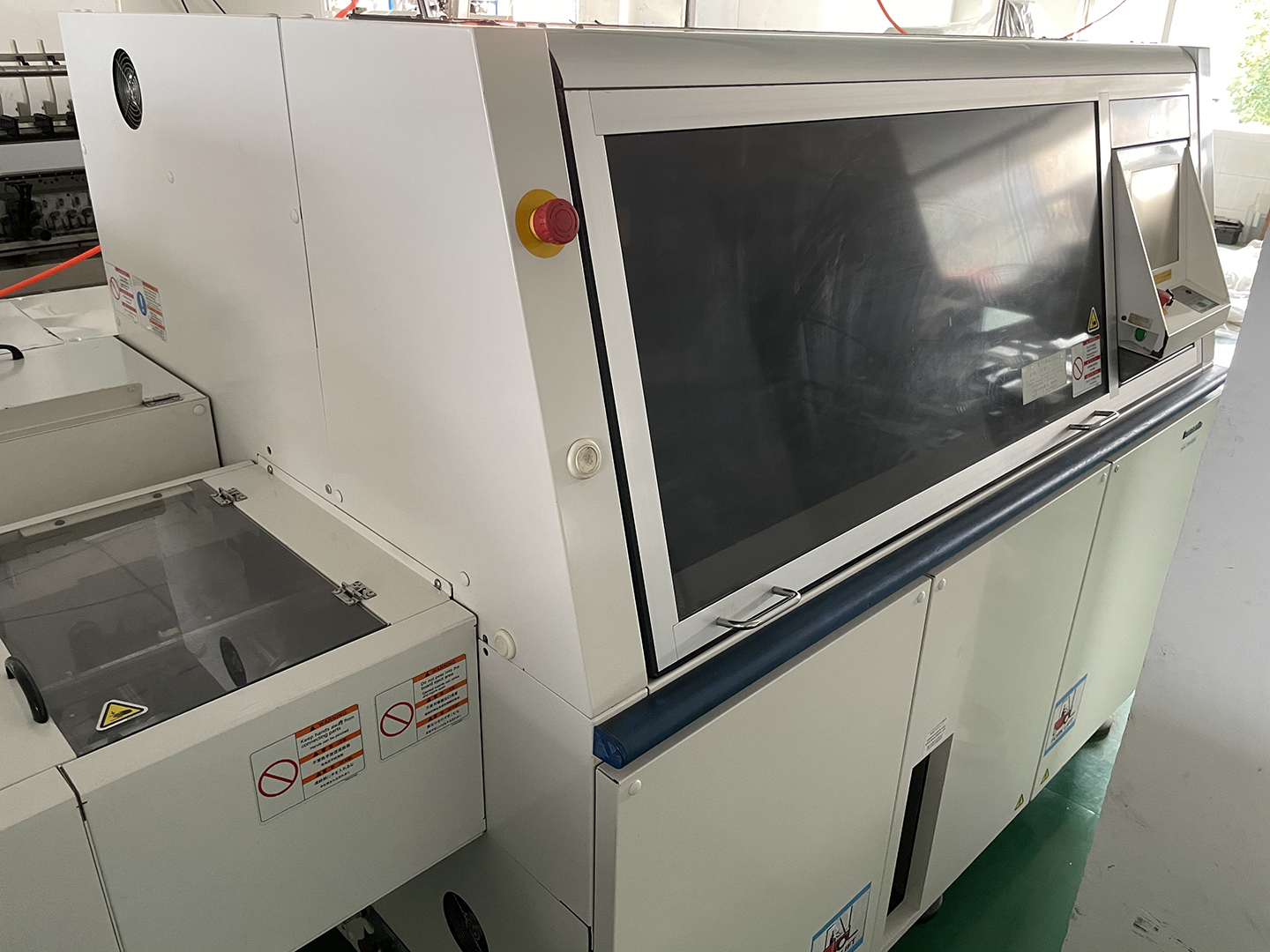

The Panasonic RL131 is a high-density radial lead component insertion machine designed for high-speed and high-precision assembly in electronics manufacturing. Here are some of the key features and specifications of the Panasonic RL131:

1. Insertion Speed: The RL131 offers a fast insertion speed, with capabilities ranging from 0.25 seconds to 0.6 seconds per component depending on the component size and pitch.

2. Component Pitch: It can handle components with various pitch specifications, including 2-pitch (2.5mm/5.0mm), 3-pitch (2.5mm/5.0mm/7.5mm), and 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm).

3. Component Inputs: The machine is available in two models, one with 40 component inputs and another with 80 component inputs, providing flexibility based on production needs.

4. PCB Dimensions: The RL131 can accommodate PCB sizes ranging from L 50 mm x W 50 mm to L 508 mm x W 381 mm.

5. Insertion Direction: Components can be inserted in four directions (0°, 90°, -90°, 180°), allowing for versatile board layouts.

6. Electrical and Pneumatic Requirements: The machine operates on 3-phase AC 200 V and requires a pneumatic source of 0.5 MPa, 80 L/min.

7. Machine Dimensions and Weight: The dimensions and weight of the RL131 vary depending on the model, with one version measuring W 2,104 x D 2,183 x H 1,620 mm and weighing 1,750 kg, while the other version with more inputs is slightly larger and heavier.

8. Additional Features: The RL131 is equipped with a complete self-correction function for high reliability and can be configured with additional options to support larger PCB sizes and increased productivity.

Product Description



Panasoni insertion machine RL131 THT for smt line





Specification



item	value
Condition	New
Weight (KG)	1000
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	3 months
Core Components	Motor
Place of Origin	Japan
Brand Name	Panasoni
Model Number	RL131
Type	SMT Machine
DELIVERY	20-35 Days
Product name	Panasoni insertion machine RL131
Name	Panasoni insertion machine
