TRI AOI TR7700 SIII 3D for smt line

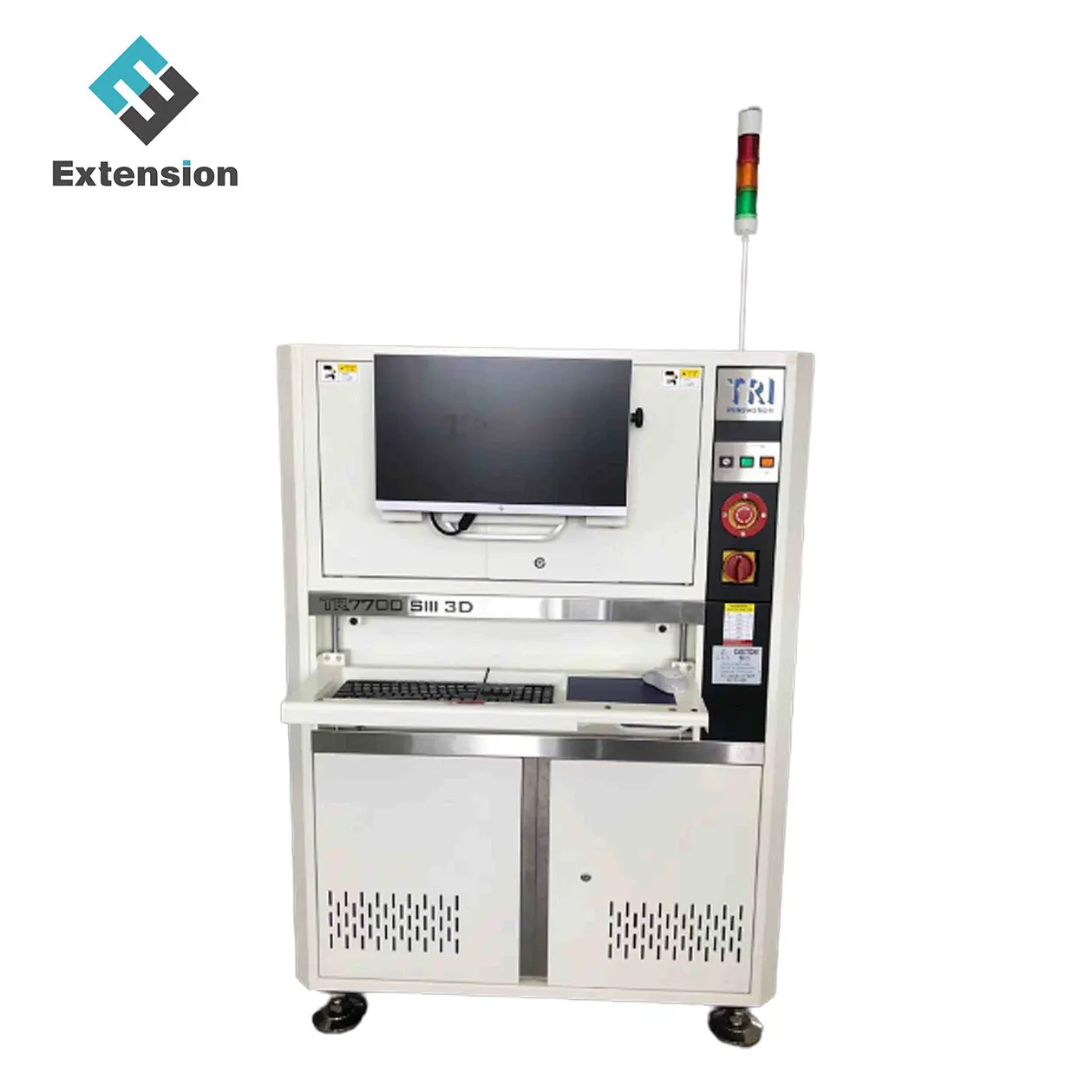

TRI AOI TR7700 SIII 3D---3D AOI Inspection Machine for smt line

The TR7700 SIII 3D is a high-performance  3D AOI machine launched by TRI, designed for the SMT production line to enhance production quality and efficiency. Here are the key features and specifications of this equipment:

1. High-Speed 2D+3D Inspection Capability: Capable of inspecting components as small as 01005, ensuring a high defect coverage rate.
2. True 3D Contour Measurement Technology: Equipped with single/dual 3D laser sensors, the maximum 3D measurement range can reach 20 millimeters, suitable for inspecting components of various heights.
3. Intelligent Rapid Programming Interface: Features automated databases and offline programming capabilities, simplifying the programming process.
4. Optical System: Equipped with a 4 Mpix high-resolution camera, imaging resolution is available at 10 µm or 15 µm, using multi-phase RGB+W LED lighting.
5. Inspection Performance: Imaging speeds vary depending on resolution: 60 cm²/sec (10 µm 2D), 120 cm²/sec (15 µm 2D), 27-39 cm²/sec (10 µm 2D+3D), and 40-60 cm²/sec (15 µm 2D+3D).
6. Motion Control: X-axis and Y-axis control use ball screws and AC servo controllers, providing a 1 µm axis resolution.
7. Board Handling: Maximum PCB size is 510 x 460 mm, PCB thickness range is 0.6-5 mm, and the maximum PCB weight is 3 kg.
8. Conveyor: Inline design, height 880 – 920 mm, compatible with the SMEMA standard.

Additionally, the TR7700 SIII 3D comes with various inspection functions, including component absence, tombstoning, polarity errors, solder defects, etc., ensuring comprehensive inspection of the assembled circuit board.

The dimensions and weight of the equipment vary depending on the model, for example, the dimensions of the TR7700 SIII 3D are 1100 x 1670 x 1550 mm, and the weight is 1030 kg.
